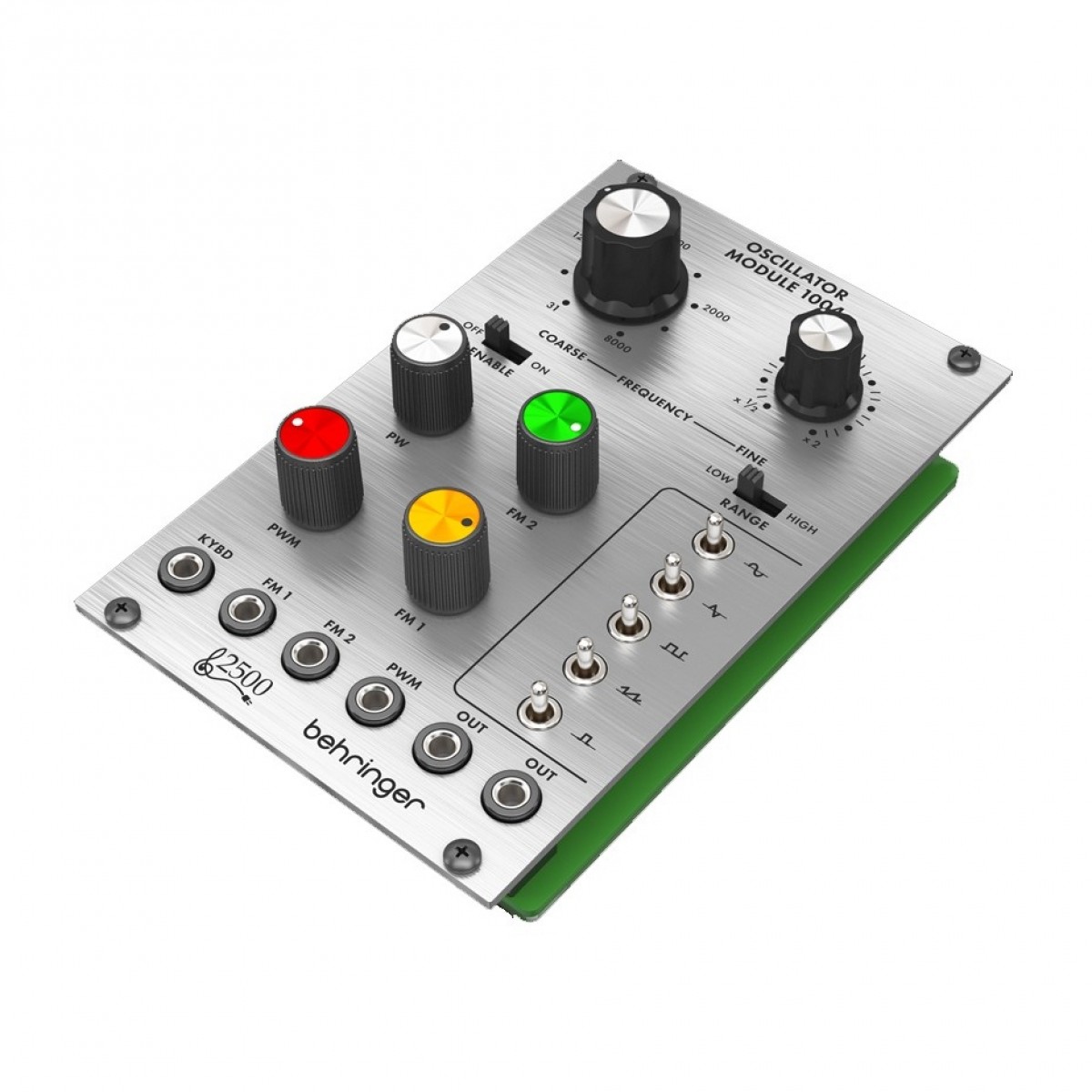

The Behringer 1004 Oscillator Module is available at SynthforSale. Order now for fast UK home delivery. The ins and outs No corner has been cut when it comes to connectivity Behringer have thought of just about everything. Expand your sound with the 1V/Octave keyboard and two VCO mod inputs whilst the dual parallel oscillator outputs allow you to distribute your signal to other modules in your set-up. Whats in the name? First released in the 70s. The 2500 series modules proved popular with some of the industrys leading names. Artists from The Who to Vangelis and even Kraftwerk imbued the unique sonics of the modules into their productions. Thanks to Behringer now you too can enter the hall of fame and become part of the legacy! Features Boasts an authentic reproduction of the 2500 Series circuitry Waveforms can be combined and inversed into the audio outputs Output frequency range from 0.03 Hz to 16 kHz in 2 ranges Fine frequency control adjusts over +/- 1 octave Frequency modulation with two inputs and controls responding to 1 V/octave Specifications Inputs FM 1/2: Type: 2 x 3.5 mm TS jacks Impedance: 50 kohm unbalanced Max input level: 10 V 1 V/octave Keyboard: Type: 3.5 mm TS jack Impedance: 50 kohm unbalanced Max input level: 10 V 1 V/octave PWM: Type: 3.5 mm TS jack Impedance: 50 kohm unbalanced CV range: ±10 V 10 percent per volt Outputs Type: 2 x 3.5 mm TS jacks Impedance: 1 kohm unbalanced Max output level: 10 V p-p Controls Coarse: Sets oscillator frequency (8 octave range) Fine: Oscillator fine adjustment (±1 octave) Range: Select LFO (0.06 Hz – 16 Hz) or audio band (31 Hz – 8 kHz) Enable: Oscillator on/of PW: Pulse width adjustment (5% – 95%) PWM: Modulation depth adjustment (-∞ to unity gain) FM: 1/2 Attenuate FM inputs (-∞ to unity gain) Waveform: switches Select up to 5 waveforms (sine tri square saw pulse) Power Power supply: Eurorack Current draw: 60 mA (+12 V) 50 mA (-12 V) Physical Dimensions: 46 x 81 x 129 mm (1.8 x 3.2 x 5.1″) Rack units: 16 HP Weight: 0.17 kg (0.37 lbs) General Product Code: OSCILLATOR MODULE 1004 Inspired by an icon. Take your Eurorack set-up to new heights with the Behringer Oscillator Module 1004. This module grants you access to the highly-sought after sound of the original without the six figure price tag! Inject pure vintage tones into your sound thanks to the discrete transistor circuitry included. The wide range of controls on offer ensure an unparalleled level of sonic manipulation for you take advantage of. Regardless of what the genre is the 1004 has something to offer. Thanks to the inclusion of five waveforms theyll be nothing holding you back from subtle sines to gritty sawtooth this module can do it all and then some. Should you desire to go even further then you can mix these forms together to create unique waveform shapes and harmonics. Its hard to believe that so much fun can be had in such a small package!
