Description

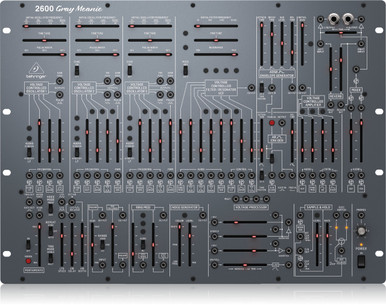

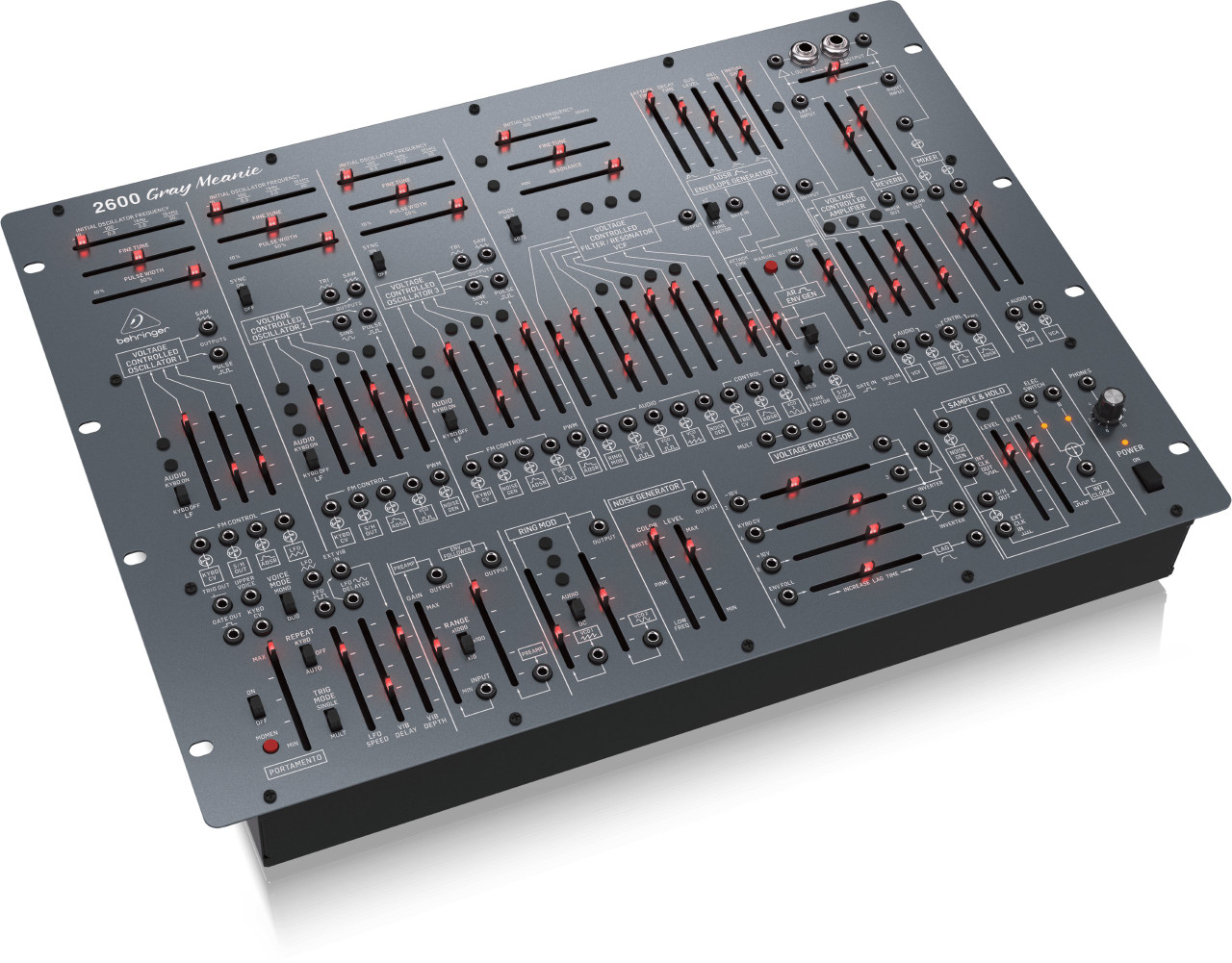

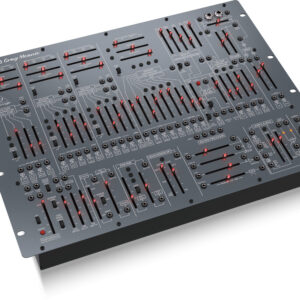

The Behringer 2600 Gray Meanie Analog Synth is New Delivered to all areas of the UK using our roadie delivery service.
This is a special edition version of the 2600, featuring a mechanical spring reverb, unicolour LED’s, and finished in the same iconic Gray Meanie style of one of the first 2600 renditions from 1971.
Authentic Engineering
The 2600 features a pure analog signal path modelled on the original ’70s Arp 2600 circuitry, as well as a triple VCO architecture and semi-modular design. These engineering decisions deliver classic sounding tones from the era, from airy ambiences, to dynamic leads and thick, powerful bass.
Sound Creation
Your sounds are generated via the 3 VCOs (boasting FM inputs). Their default waveforms can be patched to triangle, saw, square, pulse, or sine – ensuring even more sonic options are available to you.
That’s not all though. Further creativity is made possible in the form of a filter mode switch, resonance control, sample and hold, a lag processor, ring modulator, envelope follower, Schmitt trigger, noise generator and more.
You’ll be able to add even more variety to your tracks via the built-in AR envelope generators and ADSR. Tweaking the level of release, sustain, decay and attack will provide dynamism to any sound.
*Please note that this Synth does not include any patch cables.
Specifications
VCO 1 / 2 / 3
- Frequency modulation (FM) control:11 x 3.5 mm TS jacks, CV range: -10 V to +10 V
- Pulse width modulation (PWM): 2 x 3.5 mm TS jack, CV range: -5 V to +5 V, 1 V/10%
VCF
- Audio: 5 x 3.5 mm TS jacks, 50 kΩ unbalanced
- Control: 3 x 3.5 mm TS jacks, CV range: -10 V to +10 V
- ADSR / AR envelope generator
- S&H clock: 1 x 3.5 mm TS jack, threshold: > 6 V
- Gate in: 1 x 3.5 mm TS jack, threshold: +4 V
- Trig in: 1 x 3.5 mm TS jack, threshold: +5 V
VCA
- Audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
- Control (linear): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V
- Control (exponential): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V
Mixer / Reverb
- Audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
- Left / right inputs : 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
LFO
- Ext vib in: 1 x 3.5 mm TS jack, 50 kΩ unbalanced
