Description

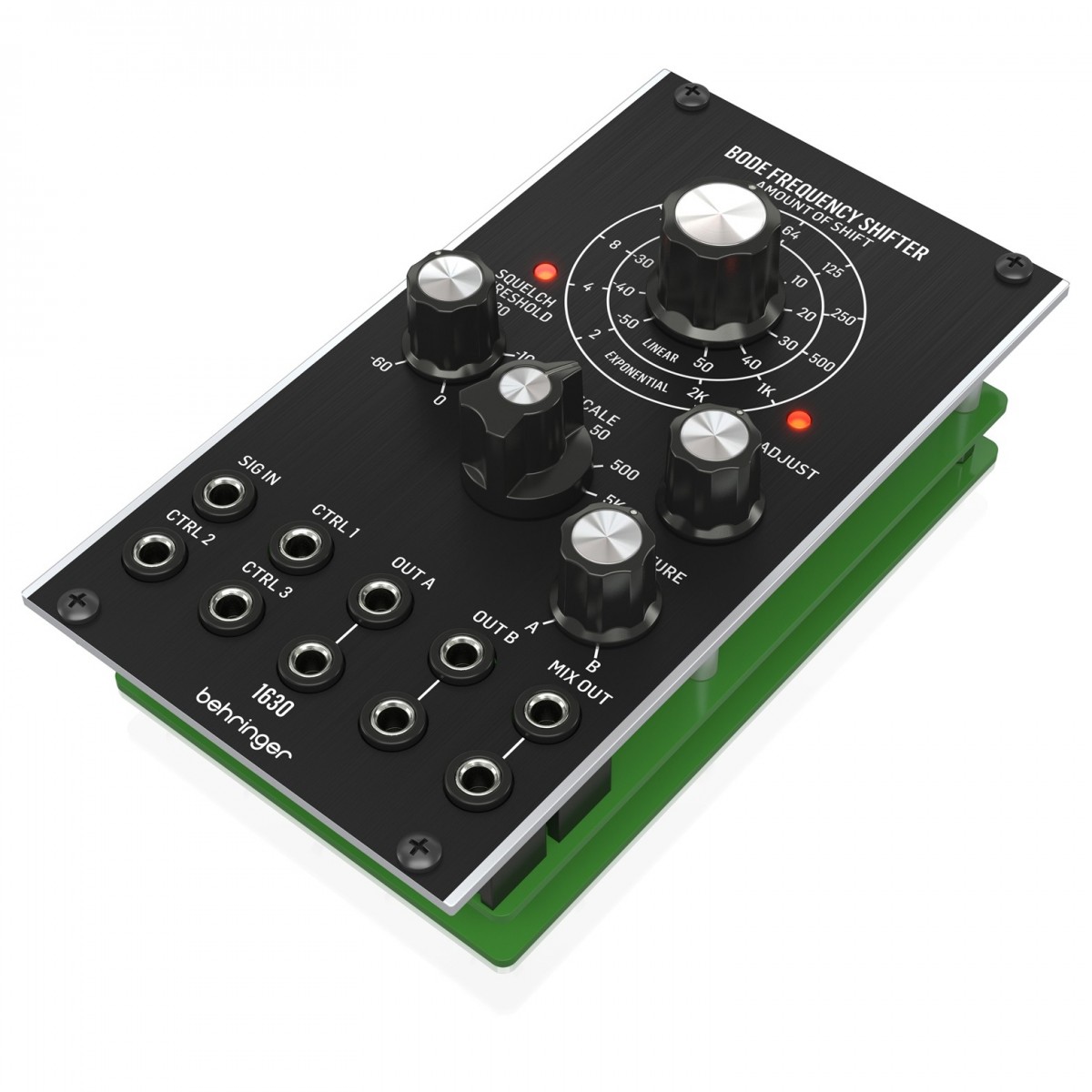

The Behringer Bode Frequency Shifter is an authentic recreation of a renowned frequency shifter from the 70s designed for Eurorack. With the ability to accurately shift the entire frequency spectrum continuously variable from -5 to +5 kHz this device offers unparalleled control over your sound. Featuring state-of-the-art circuitry including a voltage-controlled beat frequency quadrature oscillator the Behringer Bode Frequency Shifter precisely shifts input signals across the audio frequency range of 30 Hz – 16 kHz. The amount of shift is accurately voltage-variable with linear or exponential control allowing for precise adjustments to your audio. Equipped with a variable threshold squelch the device minimizes apparent carrier bleed-through due to input signal background noise ensuring a clean and immersive sound experience. With minimal distortion and artifacts the Behringer Bode Frequency Shifter delivers clean clear frequency shifting for your Eurorack modules. Classic Frequency Shifting Based on a classic Eurorack effects processor from the 1970s the Behringer Bode provides crisp and responsive frequency shifting. Accepting input signals of anything from 30 Hz to 16 kHz and an adjustment range of ±5 kHz any audio signal can be manipulated and shifted without distortion or artifacts interfering with your sound. An adjustable squelch threshold helps remove any background noise from your signal while a parallel mix knob lets you adjust a balance between your dry and shifted signal. Plus multiple CV inputs to adjust the controls help add movement and character to your sounds. Features Authentic recreation of a vintage Bode frequency shifter for Eurorack Continuously variable frequency shifting from –5 kHz to +5 kHz Beat frequency quadrature oscillator with CV control allows you to control the shape and speed of your frequency shifts Shifts input signals anywhere in the frequency spectrum from 30 Hz to 16 kHz Voltage-controlled quadrature (square wave) oscillator to control beat frequency Modulate the amount of frequency shifting with linear or exponential voltage control Manual squelch threshold allows you to cut background noise from the original signal Excellent circuitry design prevents unwanted distortion or artifacts Specifications Frequency Shift Amount: ±5 kHz Input Signal Frequency: 30 Hz to 16 kHz Squelch Threshold: 0 to -60 dB Eurorack Width: 14 HP Current Draw: 110 mA (+12 V) 110 mA (-12 V) Dimensions: 172 x 103 x 87 mm (6.8 x 4.1 x 3.4″) Weight: 0.17 kg (0.37 lbs)
