Description

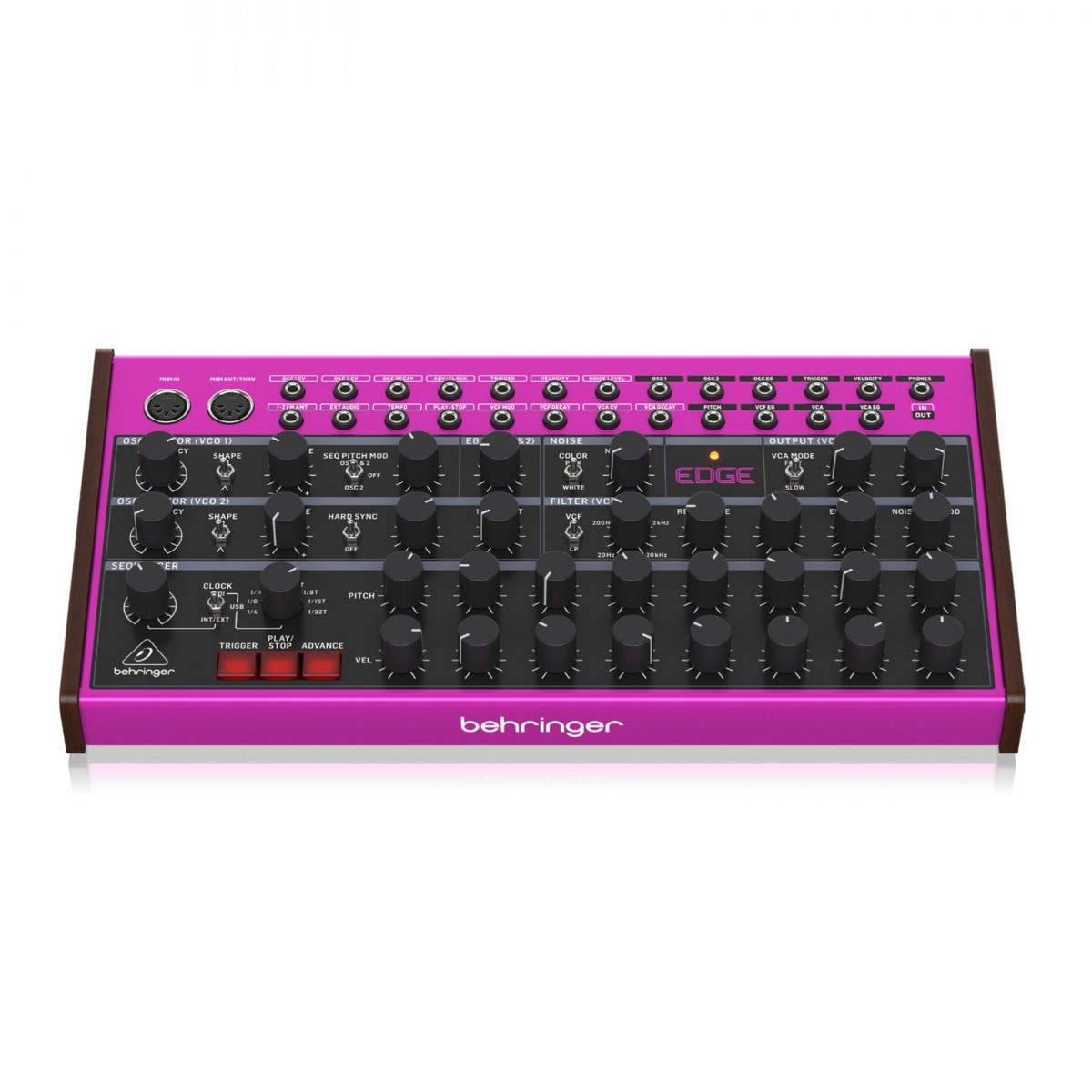

The Behringer EDGE Semi-Modular Percussion Synth is your gateway to fat and glitchy percussive synth sounds. You can get going instantly thanks to its preconfigured routing. Or dive deep into sound design by patching its 15×10 In/Out matrix and tweaking its 44 real-time controls. The Behringer EDGE guarantees dynamic exciting yet high quality results. At the root of this is its dual VCOs shaped by a 24dB resonant ladder filter. And you can easily add more timbral interest by dialing in a noise source that can also be used to modulate the filter. The heart of Behringer EDGE is its dual 8 voice step sequencer. This produces razor sharp synth patterns with little effort and can be ramped up to 10000 BPM for a monstrously mangled sonic result. With precision three envelope amplitude control too youll find that the sequencing possibilities offered by this small synth are immense. Why choose the Behringer EDGE? The Behringer EDGE provides insanely fat music creation with a pure analog signal path based on authentic VCO and VCF designs. This powerhouse features dual VCOs with pulse and triangle waves oscillator sync and FM for an expansive range of sounds. The white/pink noise source and external input offer unlimited additional timbres while the multi-mode 24 dB resonant ladder filter includes low and high-pass options with cutoff modulation by noise. Detailed control is at your fingertips with three separate decay envelopes for pitch filter cutoff and amplitude. Innovative Sequencing and Control Features The dual 8-step sequencer with pitch and velocity controls inspires grooves and rhythms with speeds up to 10000 BPM for audio range waveform generation. Eight different time division rates and multiple clocking sources such as MIDI/USB enable synchronization with other equipment. Comprehensive MIDI implementation including MIDI channel and voice priority selection ensures seamless integration with your setup. Semi-Modular Design and Vast Patching Options The Behringer EDGEs semi-modular design requires no patching for immediate performance thanks to its default routings. However the 15 x 10 I/O matrix offers vast and flexible patching options. With 44 controls you have direct real-time access to all important parameters giving you complete creative freedom in shaping your sound. The Behringer EDGE is perfect for those seeking a unique and inspiring instrument for their music production needs. Features Uses an analog signal influenced by classic designs Pulse triangle oscillator sync FM and more from dual VCOs Make amazing rhythmic patterns with dual 8-step sequencer Create additional timbres with the white/pink noise source Low and high-pass modulation of a multi-mode 24dB resonant ladder filter Detailed amplitude control with three separate decay envelopes Create mangled sounds by dialling the sequencer speed all the way to 10000bpm Semi-modular design features default routings that can get you playing in an instant Incredible patching possiblity with the 15×10 I/O matrix Patch and tweak away with 44 real-time controls 8 different rates for its time division control Specifications Synthesizer Architecture Number of voices: Monophonic Type: Analog Oscillators: 2 VCF: 1 HP/LP 4-pole (-24dB/Oct) ladder filter Envelope: 1 per VCO 1 VCA decay 1 VCF Noise: White pink Connectivity Power input: DC input connector Power switch: Push button on / off USB (MIDI): USB 2.0 type B MIDI In / Out /Thru: 2 x 5-pin DIN / 16 channels Output: VCA output: 3.5 mm TS unbalanced max +14.5 dBu Headphones: 3.5 mm TRS max. 450uW @ 64 Ω Headphones output impedance: 470 Ω Inputs Type: 3.5 mm TS OSC 1 CV: -5 V to +5 V OSC 2 CV: -5 V to +5 V OSC decay: -5 V to +5 V ADV/clock: more than 3.2 V (10 V max) Trigger: 0 to +5 V Pulse or Gate signal (+10 V max) Velocity: 0 V to 5 V Noise level: 0 V to 8 V 1-2FM AMT: 0 V to 8 V Ext audio: 10 V max Tempo: -5 V to +5 V Play/stop: more than 3.2 V (10 V max) VCF mod: -5 V to +5 V VCF decay: -5 V to +5 V VCA CV: 0 V to 8 V VCA decay: -5 V to +5 V Outputs Type: 3.5 mm TS OSC 1: ± 5 V OSC 2: ± 5 V OSC EG: 0 V to 8 V Trigger: 0 to +5V Pulse Velocity: 0 to +5V Pitch: ± 5 V VCF EG: 0 V to 8 V VCA EG: 0 V to 8 V USB Type: Class compliant USB 2.0 type B Supported operating systems: Windows 10 or higher / Mac OS X 10.14 or higher Oscillator (VCO) 1 Section Controls: Frequency ± 5 octave (10 octave range) Envelope: -5 to +5 Level: 0 to 10 EG (VCO 1&2) decay 0 to 10 Switches: Shape: pulse triangle Seq pitch mod: osc 1&2 off osc 2 Oscillator (VCO) 2 Section Controls: Frequency ± 5 octave (10 octave range) Envelope: -5 to +5 Level: 0 to 10 1-2 FM amt 0- 100% Switches: Shape: pulse triangle Hard sync on/off Noise Section Controls: Noise/ext 0-100% Switch: Color: pink/white Output (VCA) Section Controls: Decay 0 to 10 Volume: 0 to 10 Switch: VCA mode: fast/slow Filter (VCF) Section Controls: Cutoff frequency: 0 to 10 (20 Hz – 20 kHz) Resonance: 0 to 10 Decay: 0 to 10 Envelope : -5 to +5 Noise/VCF MOD: 0 to 10 Switch: VCF: HP/LP SEQUENCER Controls: Tempo 0% – 100% Scale 1/4 1/8 1/16 1/32 1/4T 1/8T 1/16T 1/32T 8 Pitch controls ± 5 V 8 Velocity controls 0 to 5 V Switch: Clock: MIDI USB INT/EXT LED: Active step indication Buttons: Trigger play/stop Advance Power Requirements External power adapter: 12 V DC 1000 mA Power consumption: 4 W max Indicator: Power LED
