Description
Explore the Behringer Four LFO – Eurorack Module from Behringer. Below you will find product details, specifications and images to help you decide whether it is right for your setup.

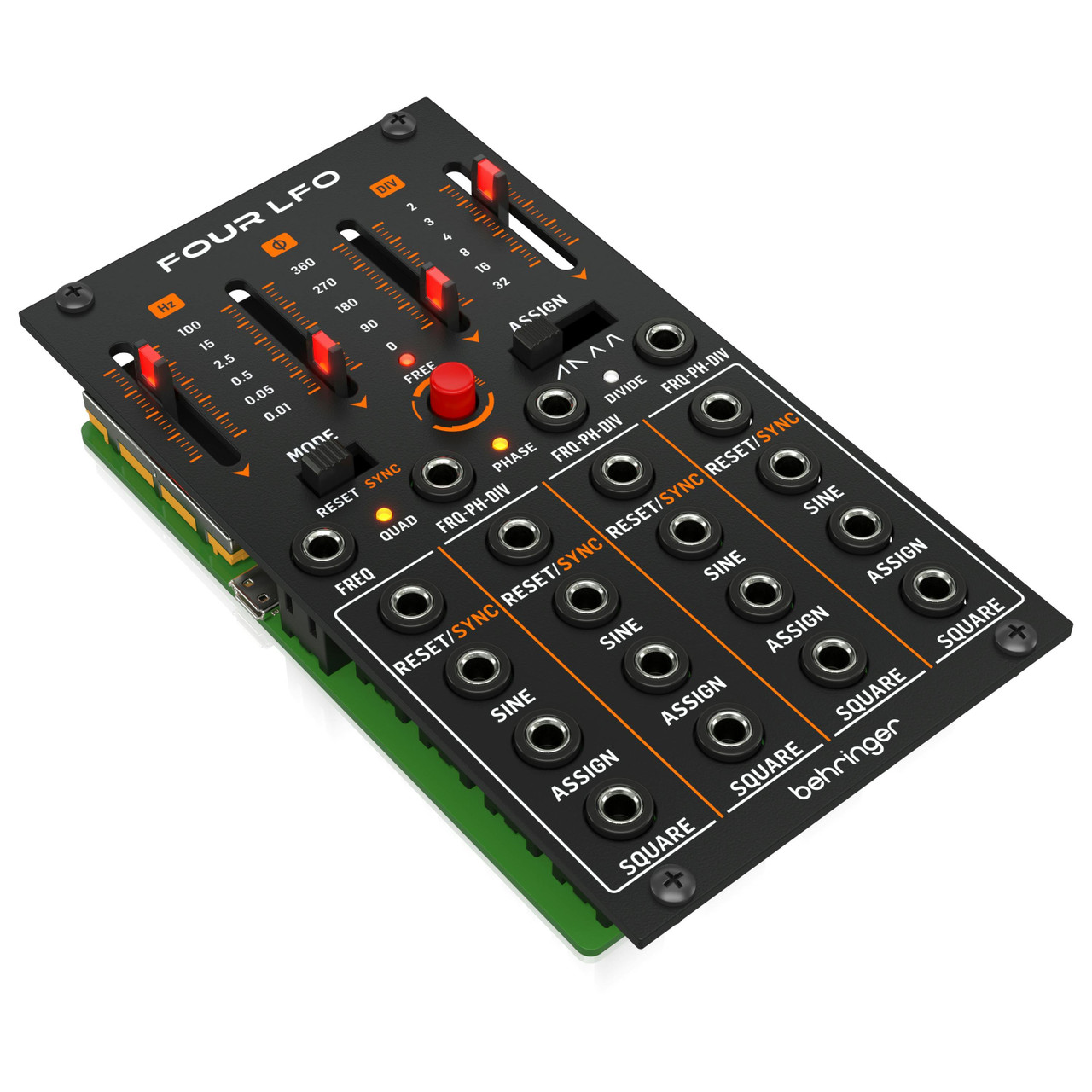

Expand your synth setup and create even more intricate effects with the Behringer Four LFO. This compact Eurorack module comes with 4 voltage-controlled LFOs based on the incredible open source Batumi from Xaoc Devices. Each LFO comes with separate user-assignable waveforms and offers a slew of options for you to sculpt unique sequences and waveforms.
Ready for Any Signal
The Four LFO provides a uniquely flexible platform that allows you to change and shape various waveforms and patch them into different effects to create wild and otherworldly soundscapes. Faders on each of the LFOs control frequency ranges from 500Hz all the way up to a whopping 28 hours! Free, quadrature, phase and divide modes allow for even more sound shaping.
Controls
Additional controls on the Four LFO include a zoom mode so you can more precisely dial in frequency settings; a reset and sync input for each channel; independently assignable reset and tap tempo inputs and LFO saw, ramp, triangle and trapezoid waveforms.
Eurorack Ready
The Four LFO is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the Four LFO to be mixed with other synth modules for a truly unique set up.
Key Features
- 4 voltage-controlled LFOs with user-assignable waveforms based on Xaoc Devices Batumi.
- Ultra-high resolution Texas Instruments 80501 DAC.
- 4 faders to control ultra-wide LFO rates from 500 Hz to 28 hours.
- Free, quadrature, phase and divide modes for creative sound shaping.
- Zoom mode for precise frequency settings.
- Reset and sync input for each channel.
- Assignable reset and tap tempo inputs.
- Sine, square and assignable waveshape outputs.
- User-assignable LFO waveforms featuring saw, ramp, triangle and trapezoid.
- USB connector for easy firmware updates.
- 4 controls and switches give you real-time access to all important parameters.
- Eurorack specs: 12 HP, 100 mA +12 V, 100 mA -12 V.
Specifications
CV In
- Type: 4 x 3.5 mm TS jacks, DC coupled
- Impedance: >1 MΩ, unbalanced
- Max input level: 10 V p-p
Reset/Sync In
- Type: 4 x 3.5 mm TS jack, DC coupled
- Impedance: >1 MΩ, unbalanced
- Max input level: 10 V p-p
Sine Out
- Type: 4 x 3.5 mm TS jack, DC coupled
- Impedance: >1 MΩ, unbalanced
- Max output level: 10 V p-p
Assign Out
- Type: 4 x 3.5 mm TS jack, DC coupled
- Impedance: >1 MΩ, unbalanced
- Max output level: 10 V p-p
Square Out
- Type: 4 x 3.5 mm TS jack, DC coupled
- Impedance: >1 MΩ, unbalanced
- Max output level: 10 V p-p
Controls
- Sliders: 4 x function attenuator
- Switches: Mode (Reset/Sync) / Assign (ramp, saw, triangle, trapezoid)
- Button: Function (Free, Quad, Phase, Divide)
- LED: Function (Free, Quad, Phase, Divide)
Check the current price and availability, then follow the retailer link to order directly from a UK music retailer.
