Explore the Behringer KOBOL Expander Synth from Behringer. Below you will find product details, specifications and images to help you decide whether it is right for your setup.

The Kobol Expander from Behringer is a 2 voice fully analogue synthesizer. What makes this synth unique is the VCO waveforms can morph between all wave shapes found in the 2 analogue oscillators. Inspired by the sound of the 70’s, notable uses of similar synths from this period are, Vince Clarke, Vangelis, Jean-Michel Jarre, Depeche Mode, Peter Gabriel and Hans Zimmer.

Whilst being monophonic, The Kobol Expander does contain the ability to Poly Chain up to 16 Voices, you could get 3 of these to create your own 3 voice analogue synth, however you could also use other Poly Chain compatible devices to create your own unique analogue poly synth.

Key Features:

• 32 CV Patch Points:
  The Kobol Expander has 32 patch points ready to go, incorporate your Eurorack instruments and CV capable equipment. CV allows you to expand and even combine units together, for example the Behringer Neutron can be expanded with the Kobol Expander. The unit is also in a Eurorack friendly form factor along with a lot of Behringer’s other equipment.
• Sweepable waveshapes:
  The waveshapes can be swept (morphed) between the different waves. A lot of other synths allow you to select different waveshapes via a selection. The Kobol Expander allows you to morph between them, giving you the ability to have total freedom and fall upon new waveforms, total sonic freedom.
• External Audio processing:
  The Audio input allows you to route audio through the units circuity. Allowing you to add the Kobol’s analogue saturation to beef up another synth, or even add some dirt and grit to a drum beat.

Specifications:

• Polyphony: Monophonic
• Oscillators:
  – 2 VCO’s
  – Waves: Triangle, Shark/Triangle, Sawtooth, Sawtooth/Square, Square, Pulse, Variable Pulse.
  – Hard Sync: VCO 2 syncable to VCO 1
• Low-Pass Filter:
  – 24dB VCF, with cutoff and resonance control
• Envelopes:
  – 2x Attack, Decay + Sustain (ADS)
  – Assignable to Amp and Filter controls
• Low Frequency Oscillator:
  – Waves: Triangle, Square
  – Destinations: VCO Mod (hard wired), assignable via patch points.
• Connections:

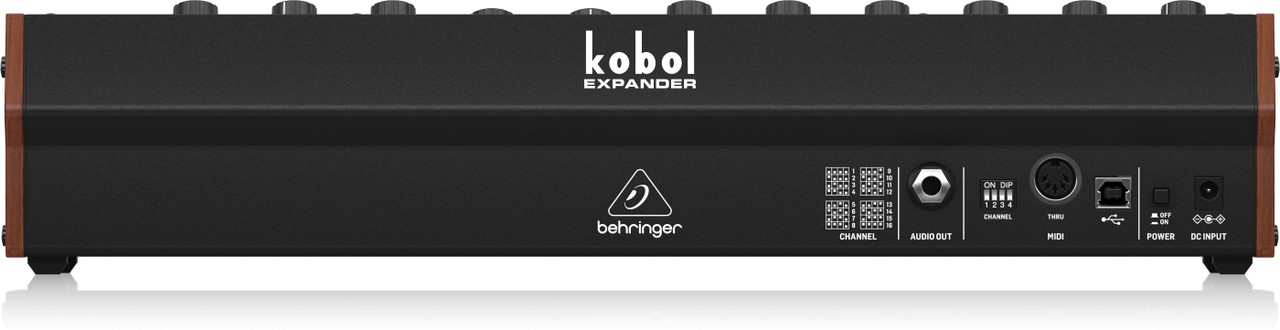

  – Output: 1x 1/4″ TS Jack (Rear Panel) 3.5mm TS Jack (Front Panel)
  – Headphones: 1x 3.5mm TRS Jack
  – MIDI: IN + THRU 5 pin DIN, USB Type-B (Assignable via pin controls on rear of unit)
  – Expression Pedal: Volume + LP Filter TS 1/4″ Jack
  – CV: 31 patch points
  – Power: DC power Socket
• Power: DC (tba)
• Dimensions:
  – Length: 548mm / 23”
  – Width: 191mm / 7.5”
  – Height: 129mm / 5.1”
  – Weight: 1.7kg / 3.7lbs

Check the current price and availability, then follow the retailer link to order directly from a UK music retailer.
