Behringer Oscillator 1004 Eurorack Module

Behringer Oscillator 1004 Eurorack Module

£49.00

Behringer Oscillator 1004 Eurorack Module is New by Behringer . Get it supperfast with our delivery roadie service to any door in the UK Read More for product details.

More Details

SKU: 000-E8X00-00010
More in , ,
More in ,
More Gear from


Description

The Behringer Oscillator 1004 Eurorack Module is New Delivered to all areas of the UK using our roadie delivery service.

Here's what Behringer says about the Oscillator Module 1004

The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

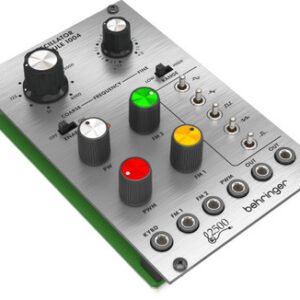

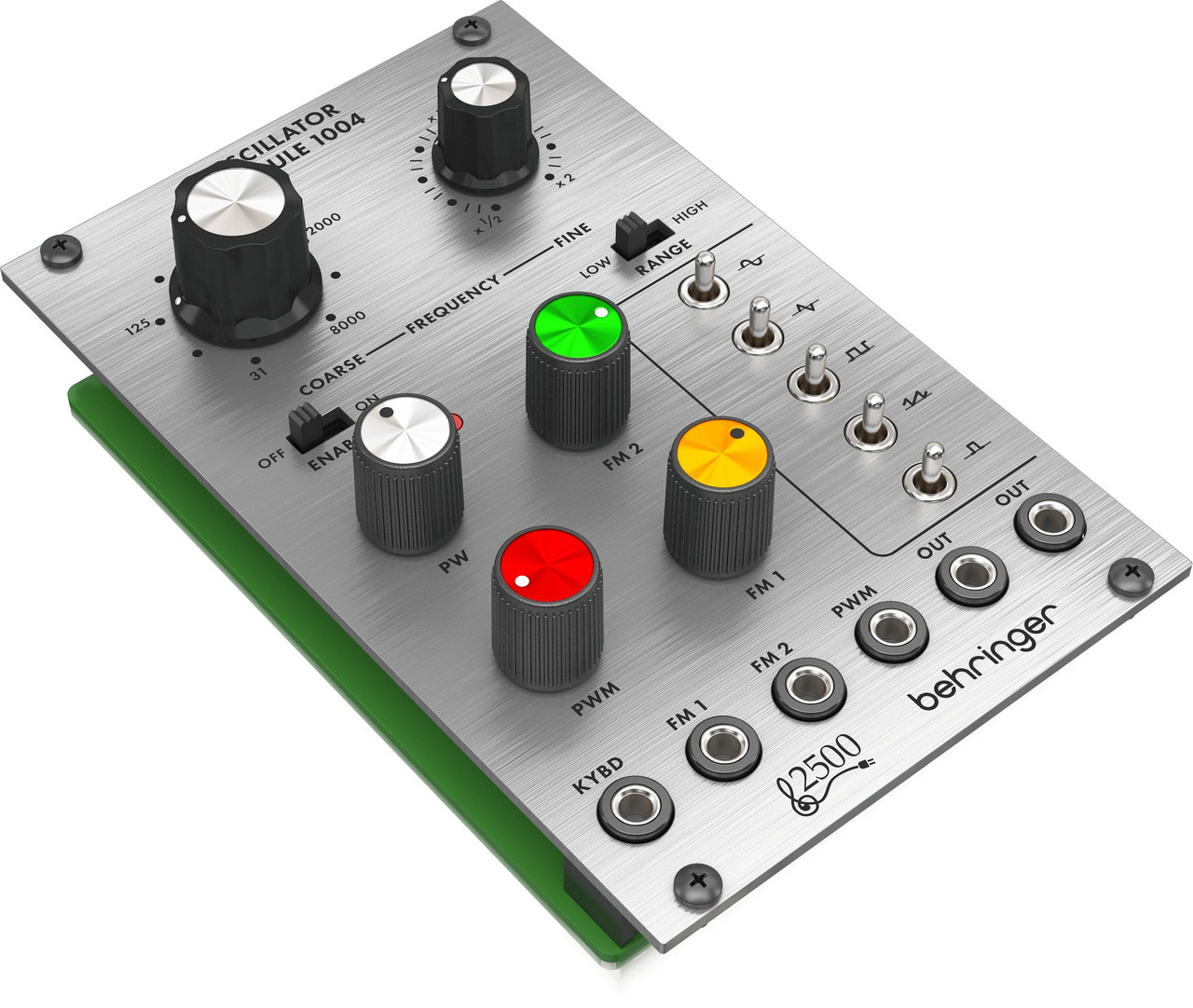

This is the Behringer 2500 series OSCILLATOR MODULE 1004. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the OSCILLATOR MODULE 1004 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Mix & Shape

The OSCILLATOR MODULE 1004 is a classic analog dual core oscillator module. The 1004 features discrete transistor circuitry to add vintage character and is equipped with coarse and fine frequency controls, frequency range switch, on/off switch, pulse width control, 3 modulation attenuators and best of all it features 3-position toggle switches for each waveform which can be set to inverted/off/non-inverted, all the enabled waveforms are mixed together to create complex waveform shapes and amazing sounds.

Ins and Outs

The 1004 gives you comprehensive connectivity, 1V/Octave keyboard input and two VCO modulation inputs, a pulse width modulation input and finally two parallel oscillator outputs to signal send to other modules.

Eurorack Ready

Installing the OSCILLATOR MODULE 1004 is easy as it is designed to fit into a standard Eurorack case. Just connect the power cable to the power supply and screw in the module using the included screws. This allows for the 1004 to be mixed with other synth modules for a truly unique set up.

Complete Your Setup

Whether you’re just getting into modular synths or looking to complete your collection, the OSCILLATOR MODULE 1004 from Behringer is a great tool to have when creating amazing music.

Features

  • Classic 1004 dual analog VCO module from the 70s
  • Authentic reproduction of the circuitry from the 2500 Series
  • VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse
  • Waveforms can be combined and inversed into the audio outputs
  • Output frequency range from 0.03 Hz to 16 kHz in 2 ranges
  • VCO range selectable between Low (LFO) or High (Audio)
  • Coarse frequency control allows adjustment over 10 octaves
  • Fine frequency control adjusts over +/- 1 octave
  • Frequency modulation with 2 inputs and controls responding to 1 V/octave
  • The width of the pulse waveform can be set manually and controlled dynamically
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

Additional information

Weight 0.5 kg
