Description

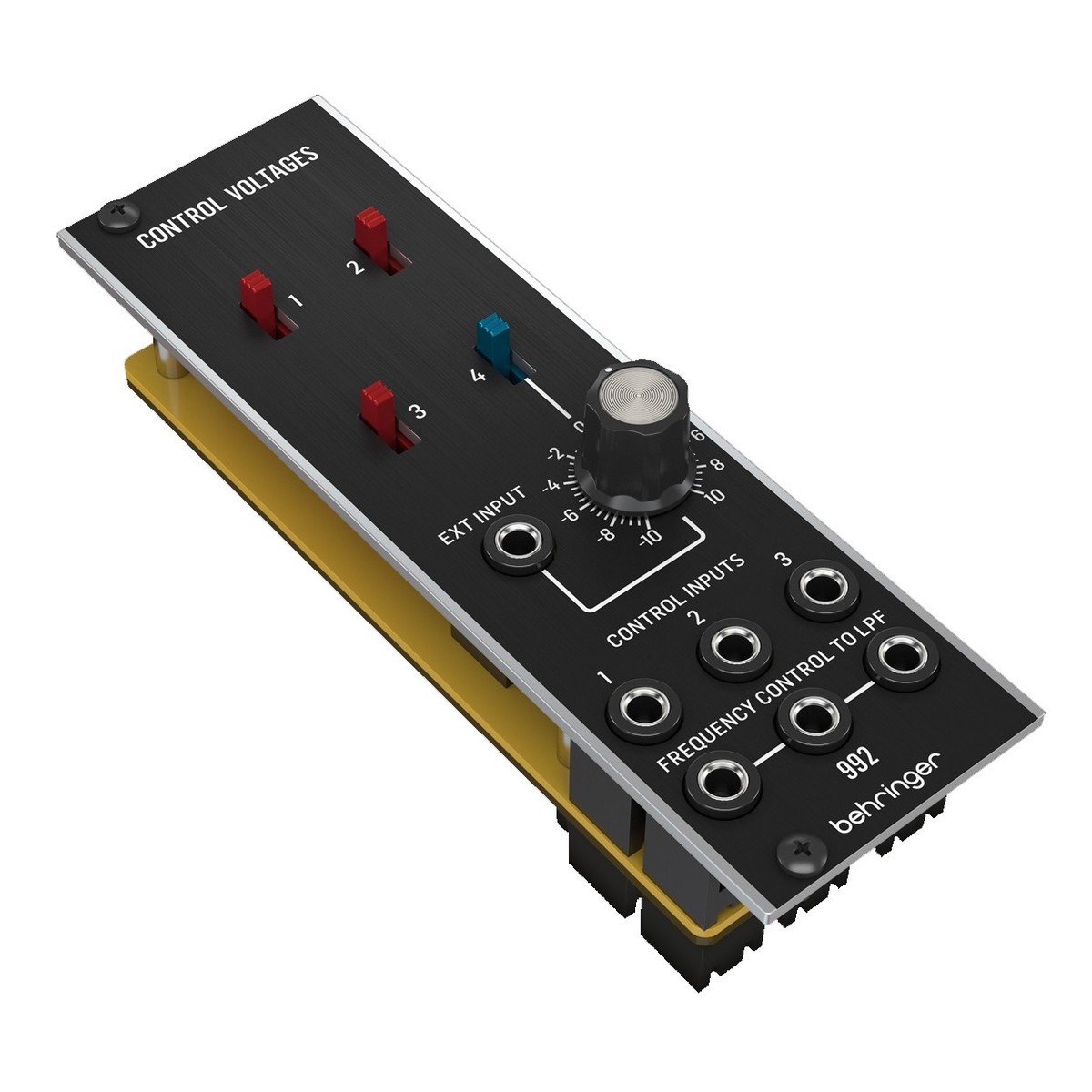

The Behringer System 55 992 Control Voltages is available at SynthforSale. Order now for fast UK home delivery. Versatile interface The 992 Control Voltages provides four channels for CV signals routing to the 904A LPF module. Thanks to this your sound can be freely connected and disconnected at the flip of a switch. When placing the switch in its up position you enable signals to connect to other modules. Behringer have everything covered. Connecting the 992 to an additional input has never been easier. Simply patch in via the external input and youre good to go. The module allows you to send out the combined voltage from all four inputs via three parallel CV outputs. These can drive multiple 904A LPF and 9048 HPF modules for an infinite number of sonic possibilities. Compact design Installing the 992 is as intuitive as its interface. Simply connect the power cables to the power supply and screw in the module. This allows you to mix the controls voltage with absolutely any other modules in your rig. A legend reborn – 55-style circuitry The System 55 series from Behringer allows you to own a piece of history and recapture the sound and tonality of legendary 55 series modules. The original modules were utilised by legendary artists such as Stevie Wonder Keith Emerson and Tangerine Dream. The unique sound generated by the modules was the product of the discrete transistor designs which became a ground-breaking landmark in the modular world. Features Authentic reproduction of the circuitry from the “Modular 55” Series Artist roster includes worlds most famous pop rock and jazz musicians 4-channel CV signal routing to 904A LPF module Single external input with inverting attenuator control 3 switched and summed CV inputs for frequency control of VCF modules 3-Year Behringer Warranty Program Designed and engineered in the U.K. 3 parallel CV outputs can drive multiple 904A LPF and 904B HPF modules Specifications Control Inputs: 3×3.5mm jacks summed Impedance: 100 kohms unbalanced CV range:1 V / octave +/-10 V maximum External Input: 1×3.5mm jack summed with CV inputs Impedance: 100 Kohms unbalanced Attenuation: Infinity to unity gain inverting and non inverting Control Outputs: 3 x3.5mm parallel jacks Impedance: 10 ohms unbalanced Maximum Output Level: +/-10 V Control Selectors: 4 x slide routing switches Attenuator: Rotary Knob selectable Power Supply: Eurorack Current Draw: 10mA (+12V) 10mA (-12v) Dimensions: 35x40x129mm Rack Units: 8HP Weight: 0.3kg Product code: SYSTEM 55 992 Take control of your modular system. The Behringer System 55 992 Control Voltages provides you with four channels of CV routingdesigned for use with voltage-controlled modules including the System 55 904A. The System 55 992 also allows for an external input with a user defined inverting attenuator control.The 992 Control Voltages have three switched and summed CV inputs for frequency control of up to three of your VCF modules. The three CV outputs can drive multiple low pass and high pass filter modules simultaneously.
