Description
The Buchla & Tiptop Audio 245t Sequential Voltage Source is New and delivered to all areas of the UK using our roadie delivery service.

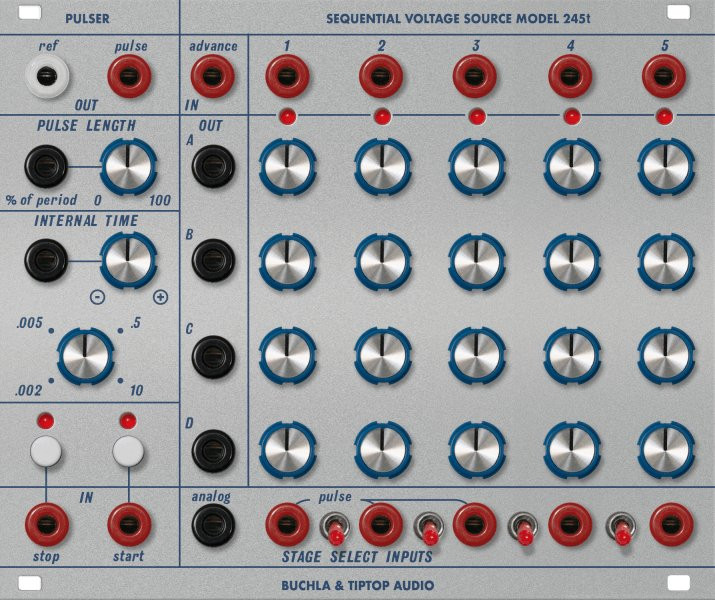

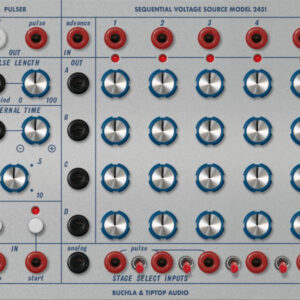

The Buchla & Tiptop Audio 245T Sequential Voltage Source Model is a powerful and flexible voltage generator that authentically recreates the original Buchla 245. The 245T Sequential Voltage Source includes CV and manual control over the pulse length to ensure you are matching your material as well as a slew of output options to connect to other modules in your system.
Specifications:
- Voltages:
– Ref Out 0 – 10V
– Pulser Out 0 to 10V
– Pulse Length CV 0 – 10V
– Internal Time CV 0 – 10V
– Start Pulse In 0 – 10V
– Stop Pulse In 0 – 10V
– Advance In 0 – 10V
– Analogue In 0 – 10V
– Stage Select In 0 – 10V
– Stored Voltage Out 0 – 10V
– Stage Gate Out 0 – 10V - Size: 30HP – Depth: 25mm
- Power: +12V 63mA / -12V 28mA
