Description
The Elektron Analog Four MKII Polyphonic Analogue Synth is New Delivered to all areas of the UK using our roadie delivery service.
The Elektron Analog Four is a fully analog 4 voice table top synth module that's ready to put a smile on your face. Elektron are well known for tweaking analog circuitry to get the tone just right – combining it with a comprehensive digital brain to deliver a powerful sequencing and effects engine.
Key Features
- Reworked analog circuitry delivering very deep and defined bass
- Enhanced analog overdrive for more bite and growl
- Crisp, large OLED screen providing optimal feedback in dimly lit environments
- Ultra durable back-lit buttons. Rated for 50 million presses
- Precise, hi-res encoders
- Quick performance controls
- Increased amount of dedicated buttons enabling quicker workflow
- Stereo audio outputs for each voice
- Expression/CV inputs for external control of Analog Four MKII parameters
- Overbridge with higher bandwidth
- Premium cast aluminium enclosure
Get ready for MKII
The Analog Four has been taken back into the workshop and taken apart to create an entirely new MKII Analog Four. The analog circuitry has been reworked and the overdrive enhanced with more attitude than its predecessor.
A lovely touch is that the MKII synth features a new OLED screen, so that you can easily delve into the Four's digital parameters. To help with this, Elektron have also added extra buttons and even some CV inputs for improved external control.
Here's what Elektron say about the Analog Four MKII:
Analog Bliss
Organic, warm, chaotic, exact, and everything in between. Moulding your own unique analog sounds is simple. Program them with precision, or feel free to design as you go. The sonic range is so vast entire tracks can be created from scratch.
From Sounds to Songs
Four synth tracks and an intuitive step sequencer enable you to easily create and layer melodies. Then play back your composition and immediately reshape it. Change notes, alter sounds, add effects. Something beautifully unique will emerge every single time.
Modular Control
Not only a splendid synthesizer, the Analog Four can also make other gear sing. Thanks to the CV/Gate and DIN sync outputs, external analog gear can be controlled in great detail. Make any modular or vintage synthesizer rig come truly alive.
Included in the Box
- Power Supply PSU-3b
- Elektron USB cable
- Quick Guide
Technical Specifications
Synth Voice Features (×4)
- Fully analog signal path
- 2 × analog oscillators
- Variable waveshape on all waveforms
- Oscillator AM and Sync modes
- 2 × sub-oscillators
- 1 × noise generator
- 1 × 4-pole analog lowpass ladder filter
- 1 × 2-pole analog multi-mode filter
- 1 × analog overdrive circuit
- Filter feedback
- 2 × assignable LFOs
- 1 × dedicated vibrato LFO
- 2 × dedicated waveshape LFOs
- 1 × amp envelope
- 2 × assignable envelopes
- 2 × dedicated LFO fade envelopes
- 1 × dedicated noise fade envelope
- 1 × dedicated vibrato envelope
- 1 × dedicated autobend envelope
- 3 × individual effect sends
Polyphony
- Up to 4 notes of polyphony
- Up to 4 part multitimbrality
- Up to 4 note unison playback
Storage
- 128 Projects
- 4096 Sounds (+Drive Sound Library)
- 128 Sounds per Project (Project Sound Pool)
- 128 Kits per Project
- 128 Patterns per Project
- 16 Songs per Project
Sequencer
- 4 synth tracks
- 1 FX track
- 1 CV/Gate track
- Sequencer MIDI Out
- Up to 64 steps per pattern
- Individual length per track
- Individual scale per track
- 6 × arpeggiators
- Parameter locks
- Step Recording mode
- Trig preview
- Trig probability
- Instant Pattern, Kit and Sound reload
- Live friendly Performance mode
- Swing, slide, accent
- Track transpose
- Micro timing
- Sound-per-step change
- Full real-time control
Send Effects
- Wideshift Chorus
- Saturator Delay
- Supervoid Reverb

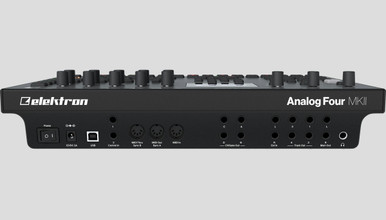

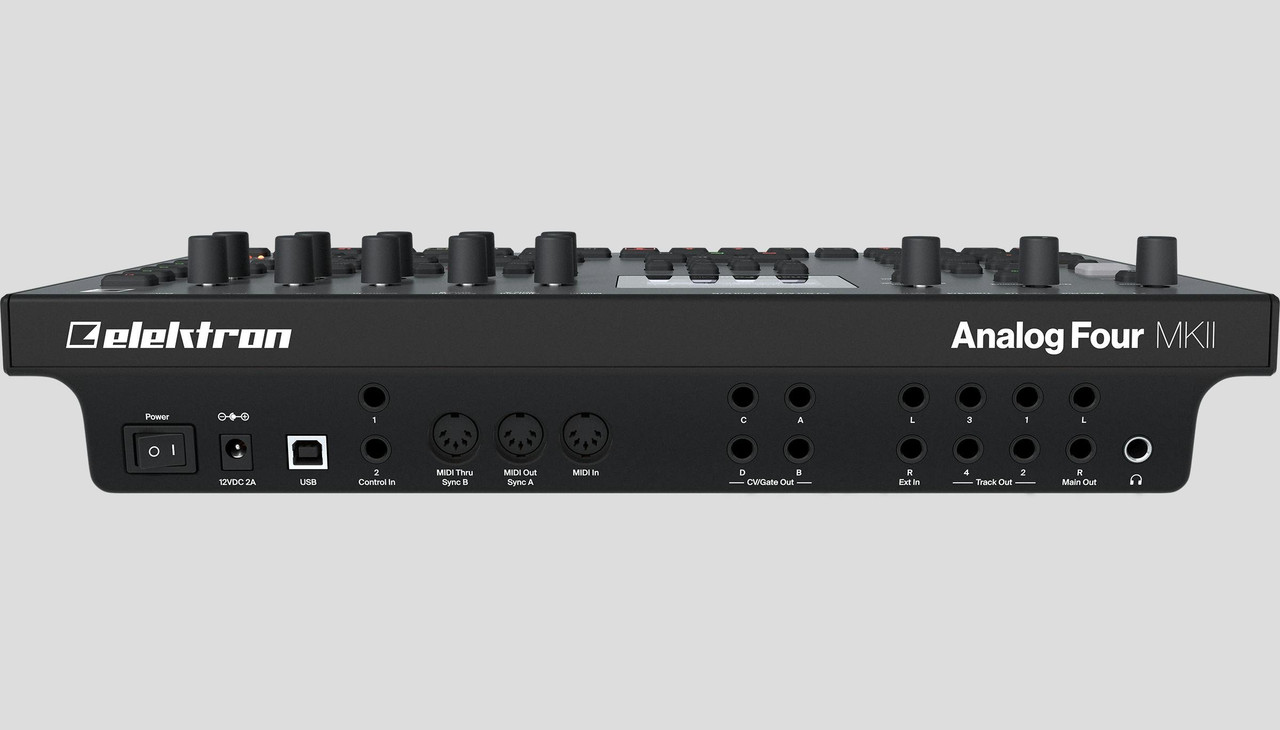

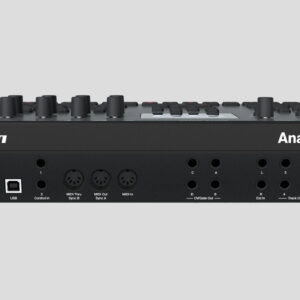

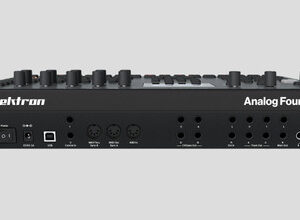

Hardware
- 128 × 64 pixel OLED screen
- MIDI In/Out/Thru with DIN Sync out
- 2 × 1/4” impedance balanced main audio out jacks
- 4 × 1/4” separate stereo voice output jacks
- 2 × 1/4” audio in jacks
- 1 × 1/4” stereo headphone jack
- 4 × 1/4” CV/Gate outputs
- 2 × 1/4” CV/Expression inputs
- 48 kHz, 24-bit D/A and A/D converters
- Flash-EEPROM upgradable OS
- Electrically isolated USB 2.0 Hi-Speed port
Balanced Audio Outputs
- Headphones out level: +19 dBu (55 Ω)
- Main outputs level: +19 dBu
- Output impedance: 440 Ω unbalanced
Unbalanced Audio Inputs
- Input level: +19 dBu maximum
- Audio input impedance: 9 kΩ
- CV/Expression inputs
- Input voltage on tip: -5 V–+5 V. Supplies +5 V on ring
- Accepts CV, Expression pedals
CV Outputs
- Voltage range: -10 V–+10 V.
- Digital S/N ratio: 102 dBFS (20–20.000 Hz)
Electrical Specifications
- Unit power consumption: 15 W typical, 20 W maximum.
- Recommended power supply: 12 V DC, 2 A
Physical Specifications
- Aluminium enclosure
- Dimensions: W385 × D225 × H82 mm (15.2 × 8.85 × 3.3″) including knobs, jacks and feet
- Weight: approximately 2.4 kg (5.3 lbs)
Miscellaneous
- Overbridge enabled
- Class Compliant USB Audio
- 3 year Elektron warranty
