Description
The Elektron Analog Heat +FX Effects Unit is New Delivered to all areas of the UK using our roadie delivery service.
Let the sonic paint drip over your beats, melodies and sounds. The Elektron Analog Heat +FX is an all-around sound colouring and manipulation box. It gives you a wide colour palette of processing possibilities. True playfulness to your ears. Whatever the source, and wherever the destination. Let your sound be your canvas.
The Heat Block
Add warmth, depth and character with eight fully-analog stereo distortion circuits – ranging from a subtle clean boost to complete annihilation. Shape and carve your material using the multi-mode filter. Selects from 7 filter types like classic lowpass and high pass, as well as a bandpass, notch or peak. Fine tune, add and subtract your lows and highs by twisting and turning the knobs of the 2-band adaptable EQ. Then fracture your sound using the noise gate.
The Digital Effects
Drift away with the warble effect – let the inspiration be whatever nostalgic magnetic media comes to mind. Continue that journey with a dash of chorus. Create rich, immersive soundscapes with delay and reverb. Drip grit with a dash of bit & sample rate reduction – adding that special touch of lo-fi glitchyness. Squeeze or fine tune the dynamic range of your signal with the compressor, and let bass focus nails down the stereo field to mono at the chosen cross-over point, allowing you to get a fat and focused low-end.
Flow
Reordering the effects to experiment and find your own signal flow, with your own special timbres. Add depth, dimension, complexity, and colour to your music – the rearrangeable signal path letting you showcase all of its nuance. Let the options be endless. Save your explorations, no matter how wild, in one of the 512 preset slots – for instant recall.
Modulation
Experiment and have fun with a bunch of modulation options, each with two destinations. Take the incoming sound and shape it into a modulation source using the envelope follower. Make the parameters wobble and weave in a coordinated or chaotic manner using any of the 3 LFOs – all with their own multiple waveforms and modulation destinations. Be complex, be simple. It's you who decides.
Specifications
Sound Processing
- 8 x stereo analog distortion circuits
- Stereo analog multi-mode filter (7 filter types)
- 2-band adaptable stereo analog EQ
- Noise gate
- Reverb
- Delay
- Chorus
- Warble
- Bits
- Compressor
- Bass focus
Modulation
- 1 x assignable envelope follower (with two destinations)
- 3 x assignable LFO (with two destinations per LFO)
- Storage
- 512 user preset slots

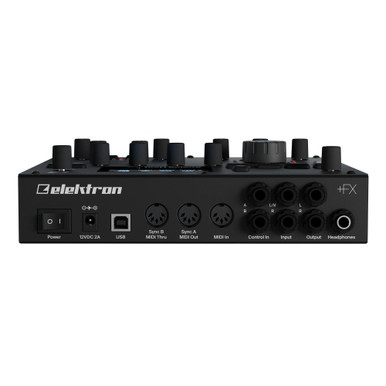

Hardware
- 128×64 pixel OLED screen
- MIDI In/Out/Thru with DIN Sync out
- 2 x 1/4" balanced audio out jacks
- 2 x 1/4" balanced audio in jacks
- 1 x 1/4" stereo headphones jack
- 2 x 1/4" CV/Expression pedal input jacks
- 48 kHz, 24-bit D/A and A/D converters
- Hi-Speed USB 2.0 port
