Description

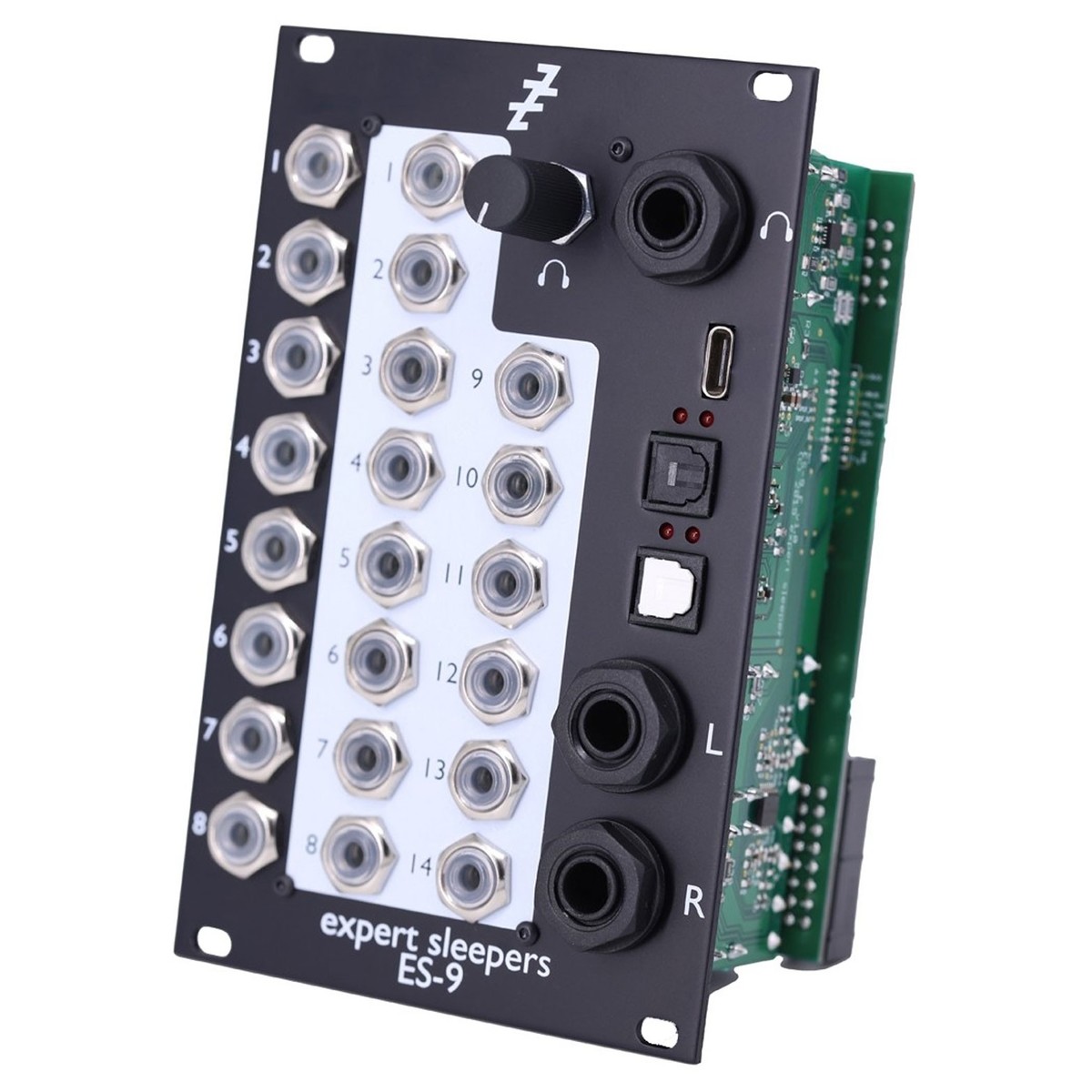

The Expert Sleepers ES-9 is available at SynthforSale. Order now for fast UK home delivery. Stay connected By using the ES-9 module from Expert Sleepers you can easily connect your Eurorack synthesizer up with your DAW – or vice versa of course. The modules central focus is the 16 inputs and outputs across the front panel. It also features USB connectivity to quickly hook it up with your PC or Mac through USB Type-C. These allow you to send and receive both audio and CV data. Being able to expand the capabilities of your Eurorack synthesizer by integrating your DAW unlocks a world of possibility. This interface makes it incredibly simple – and with a headphone socket as well as stereo outputs – its a total solution for your interfacing needs. Features 16 inputs and outputs Works with audio and CV 1.4 inch main inputs Heaphone socket Can be expanded with the Expert Sleepers ES-5 Connect other gear with S/PDIF Specifications Panel width: 16HP Module depth (including power cable): 50mm Current draw: 451mA on the +12V rail 133mA on the -12V rail (at 96kHz) USB socket: Type C Driver support: class-compliant USB 2.0 (no driver required for macOS and iOS – Windows drivers provided for Windows 7 8 & 10) Channel count: 16 in 16 out Supported sample rates: 44.1kHz 48kHz 88.2kHz 96kHz Audio sample depth: 24 bit Analogue outputs: 8x 3.5mm TS jacks DC-coupled Maximum output voltage approximately ±10V 2x 1/4″ TRS balanced jacks AC-coupled (main outs) 1x 1/4″ TRS stereo jack DC-coupled (headphones) Analogue inputs: 14x 3.5mm TS jacks DC-coupled Input voltage range approximately ±10V Digital I/O: 1x S/PDIF input (TOSlink) 1x S/PDIF output (TOSlink) MIDI I/O: 1 input 1 output (on breakout) Expansion headers: 1 for ES-5 1 for MIDI breakout Panel controls: Headphone volume Internal mixer: 8×8 crosspoint mixer Link up your modular synth with your DAW with this streamlined yet powerful Expert Sleepers module. The ES-9 provides you with 16 DC-coupled inputs and outputs. The 16 I/O provides you with masses of control through your DAW. Meaning you can easily send data from your DAW to your Eurorack system and vice versa. It makes the usually difficult task of interfacing effortless.
