Description

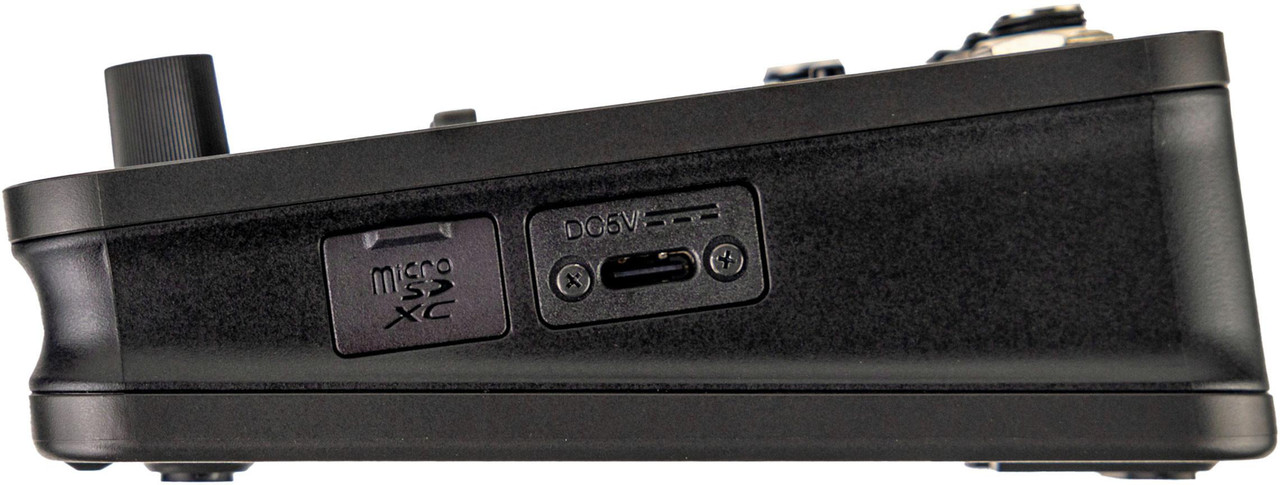

The Zoom LiveTrak L6max is a 12-channel mixer and multi-track recorder designed for musicians, podcasters, and live streamers who demand professional sound in a compact, portable format. With four combo inputs including two Hi-Z channels and eight line inputs, it easily accommodates full bands, acoustic duos, or solo performers. Record up to 12 individual tracks plus a stereo mix directly to microSD cards up to 2TB, with unlimited overdubbing and bounce options for maximum flexibility. 32-bit float recording ensures pristine, clip-free audio, while dual-AD converters on channels 1-4 preserve the dynamics of your microphones across the loudest performances. AI Noise Reduction intelligently removes hum, hiss, and background noise without sacrificing clarity. Built-in effects, 3-band EQ on every channel, and a master compressor help you craft the perfect mix, while two headphone outputs with a customizable Sub-Out mix provide tailored monitoring options on stage. The L6max also functions as a 12-in/4-out USB audio interface and control surface for your computer or mobile device. With battery, USB, or mains power, plus optional Eurorack mounting, this mixer combines studio-grade performance with complete portability.
Key Features:
- Powerful Multi-Track Recording:
Capture up to 12 individual tracks plus a stereo mix to SD cards, with unlimited overdubbing and undoable bounce options for ultimate flexibility. - Pro-Level Mixer Functions:
Each channel offers a 3-band EQ, onboard effects, AUX sends, and sound pads with MIDI sync for complete control over your performance and mix. - Clip-Free 32-Bit Float Audio:
Dual-AD converters on channels 1-4 and 32-bit float recording ensure pristine sound and prevent clipping, even in the loudest live situations.
Flexible Monitoring and Connectivity:
The L6max offers two headphone outputs with one customisable Sub-Out mix, so performers can hear exactly what they need on stage. MIDI I/O and USB MIDI allow seamless integration with synths, grooveboxes, and music apps. Sound pads can trigger jingles, samples, or sync to a MIDI clock for live electronic performances, while the free L6 Editor app for Mac and Windows lets you tailor pads, effects, and MIDI assignments with ease.
Compact Yet High-Output:
Channels 5-8 include a -20 dB PAD switch to handle loud sources such as vintage synths or Eurorack modules without additional attenuators. Built-in onboard effects, a master compressor, and dual-AD converters on the first four channels ensure your recordings remain clear, powerful, and dynamic, perfect for both live and studio use.
Portable and Versatile Power Options:
The L6max can be powered via AA batteries, USB bus power, or a mobile battery pack, providing maximum flexibility for rehearsals, live shows, or remote recording. Optional Eurorack mounting allows integration into your modular setup, combining professional-grade performance with studio convenience in a compact design.
Specifications:
- Inputs: 4 XLR/TRS combo (2 Hi-Z), 8 line inputs
- Outputs: 2 AUX sends, 1 stereo main, 2 headphone outputs, 1 Sub-Out
- Recording Format: 32-bit float WAV, up to 48 kHz
- Tracks: 12 individual + stereo mix
- Power: 4 AA batteries, USB bus power, or mains power
- Storage: microSD cards up to 2TB
- Effects: Reverb, Delay, Echo with TAP tempo
- Display: OLED high-contrast screen
- Dimensions: 320mm (W) x 170mm (D) x 55mm (H)
- Weight: 980g
- MIDI I/O and USB MIDI for external gear integration
- Eurorack mounting compatible with optional ERL-6 rack ears
