Description

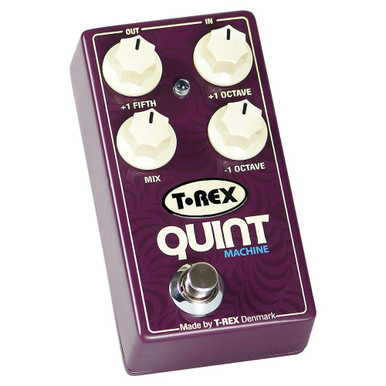

Here's what T-Rex say about the Quint Machine
Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.
Key Features
- Octave up, octave down, 5th up
- Individual volume controls, plus master mix
- Ultra-fast polyphonic tracking
- Replicate organ, synth or 12-string sound
- Play power chords on a single note
Specifications
- Input impedance @ 1KHz: Higher than 1M Ohm
- Output impedance @ 1KHz: Lower than 1K Ohm
- Power supply: 9V DC (T-Rex FuelTank)
- Minimum power supply voltage: 8V DC
- Maximum power supply voltage: 12,5V DC
- Current draw @ 9V DC: 145 mA
- Maximum input signal V p-p: 3V p-p
- Battery type: 9V battery 6F22
- Battery life: 30-60 minutes
- External connectors: input jack, output jack, 9V DC jack
- Controls: on/off switch, mix, +1 octave, -1 octave, +1 fifth
- Pedal size incl. knobs (W x H x D): 60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
- Weight excl. packaging: 0,21 kg / 7,4 oz
