Description

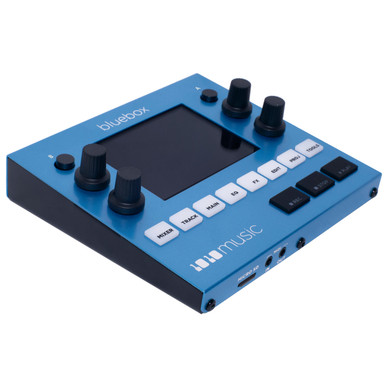

Bluebox is a compact, portable digital mixer and recorder designed for modern electronic music producers and live performers. With six stereo 3.5 mm TRS inputs, it allows you to connect gear such as Eurorack modules, samplers, drum machines, and synthesisers with ease. Each input can be routed as 12 mono or 6 stereo tracks, giving you complete flexibility in your mix.
Fine-tune your sound with individual volume, pan, mute, solo, gain and four band parametric EQ per track. Add space and character with global reverb and delay effects, all independently controllable per channel. Bluebox also provides three independent stereo outputs, a global compressor, and full MIDI sync capabilities for clock synchronisation with external gear.
Record high-resolution audio directly to a microSD card—either as a full stereo mix or individual multi-tracks. Its 3.5 inch touch screen and tactile knobs make operation intuitive, whether you are in the studio or on stage. Rugged and compact, Bluebox is an essential tool for musicians looking for a powerful yet portable mixing solution.
Key Features:
- Flexible Multi-Track Mixing:
Mix up to 12 mono or 6 stereo tracks with individual control over each channel’s EQ, gain, pan and effects. - High Quality Recording and Playback:
Capture 48k, 24 bit WAV recordings directly to microSD card, with support for simultaneous playback and recording. - Comprehensive Output Routing:
Route any track to three separate stereo outputs including assignable and headphone channels, each with independent sub-mix options.
Hands On Control:

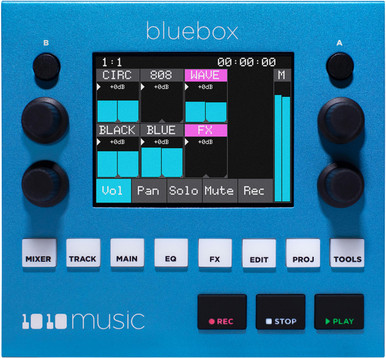

Bluebox combines touchscreen functionality with traditional tactile controls for an intuitive workflow. Use the 3.5 inch touch display to visualise levels, access menus, and adjust parameters quickly. Dedicated knobs and buttons let you make rapid changes during performance or mixing sessions, while transport controls provide instant access to play, stop, and record. Whether at home or live on stage, the interface ensures you are always in control of your sound.
Record, Edit and Playback:
With built-in multi-track recording, Bluebox allows you to capture each track independently or record your complete stereo mix. Save your sessions to the included microSD card, then revisit and layer over existing recordings. It supports simultaneous playback and new track recording, so you can build compositions on the fly or remix live sessions. All recorded audio is saved in high-quality WAV format at 48 kHz and 24-bit resolution.
Compact and Portable:
Designed for musicians on the move, Bluebox features a durable metal housing in a compact 5.5 x 5 x 2 inch footprint. It fits easily into tight setups or small studio spaces and can be powered either from a mains outlet or via USB power bank for portability. With its lightweight construction and rugged build, Bluebox is the ideal companion for gigs, rehearsals or travel-based production work.
Specifications:
- 12 mono or 6 stereo tracks
- 6 stereo 3.5 mm TRS inputs
- 3 stereo 3.5 mm TRS outputs
- Supports Eurorack levels up to ±5V
- MIDI clock sync via TRS and USB A
- 3.5 inch touchscreen display
- 4 rotary knobs, 8 navigation buttons, 3 transport buttons
- Reverb, delay and global compressor effects
- 4 band parametric EQ per track
- Records 48k, 24-bit WAV files to microSD
- Dimensions: 14 cm x 13 cm x 5 cm (5.5″ x 5″ x 2″)
- Weight: 450 grams (1 lb)
- Durable metal construction
- USB power and data via included splitter cable
- Includes MIDI adapters, microSD card and power accessories
