Description

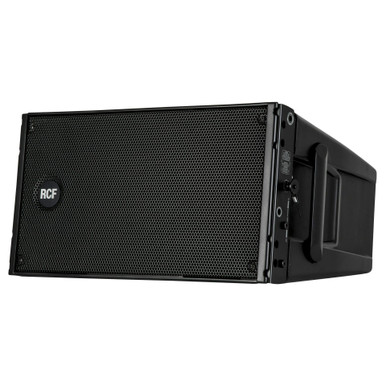

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.
Key Features:
- Tour Sound, compact size:
The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency Class-D amplifier that delivers superior SPL reducing energy requirement. - RCF precision transducers:
The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5” voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. - Powerful Class D amplifiers:
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance.
Specifications:
- Drivers:
– Compression Drivers: 1 x 2”, 2.5 v.c
– Woofer: 2×8”, 2.0” v.c - Connections:
– Inputs: XLR
– Output: XLR - Crossover Frequencies: 800Hz
- Power:
– Total Power: 1400W (Peak)
– High Frequencies: 400W (Peak)
– Low Frequencies: 1000W (Peak) - Dimensions:
– Height: 294mm / 11.57”
– Width: 569mm / 22.4”
– Depth: 434mm / 17.09”
– Weight: 20.4kg / 44.97lbs
