Description

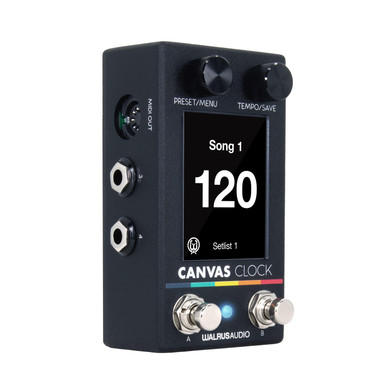

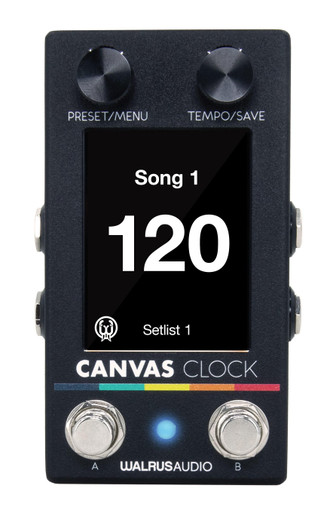

The Canvas Clock is a comprehensive MIDI and analog clock management pedal which gives you the ability to control all of your time-based effects to be synchronized together with the press of a switch. With MIDI Input/Output, 4 fully configurable ¼” Jacks, metronome output, sync input/output, and USB-C connectivity, you are truly able to synchronize almost any device that is associated with tempo, time, and BPM.
Key Features
- Set Controls For Up To 128 Songs At Once – Master Song List contains up to 128 songs with name, BPM, and MIDI Macro information
- Customisable TRS Jack Connectors – Four fully customizable TRS jack connectors for Tempo Out, CV Out, Switch In, and EXP In
- MIDI Control Non-MIDI Pedals – Send clock and expression to pedals that don’t have MIDI
- Stunning Display – 2.8” TFT LCD display with perfect visibility even under stage lights or sunlight
- Manage Songs & Setlist Via The App – USB-C connectivity for firmware updates and to manage settings, songs, and setlists via a dedicated web app
- Assignable Footswitches – Footswitches A and B are assignable (e.g., step through songs, tap tempo)
- Connect A Metronome – 1/8” metronome output
- Eurorack Compatibility – Sync In/Out jack for Eurorack
Connect the Canvas Clock to your PC via the USB-C slot, and use the dedicated web app to manage settings, songs, and setlists. Use MIDI Macros to change presets on Multi-FX pedals, making setting up for different songs much easier. Define up to 128 programmable MIDI Macros, each with up to 15 MIDI commands (Program Change, Control Change, etc.) to have total control on your setlists.
Specifications
- Power requirement: 9V, 300mA
- MIDI connections: MIDI Input and Output via DIN and 1/8” connectors
