Description

The SM58 capsule is one of the most respected live microphones in the world. It's trusted because it sounds great and is seriously rugged, it will take some serious punishment before it stops working! So what better mic to make part of your dual microphone wireless system! The BLX88 receiver makes it incredibly easy to set up and use both mics at the same time, whereas two separate systems would cost more and be more to set up!

Included in the Box

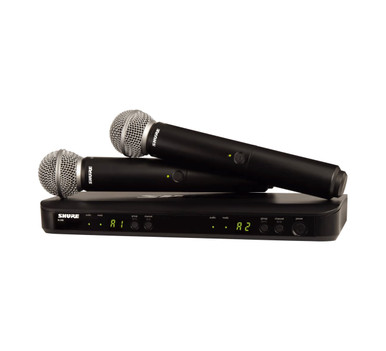

• 2x SM58 Capsule Industry-standard professional microphones for daily touring, club and studio performances with analogue handheld transmitter. Integrated microphone capsule design

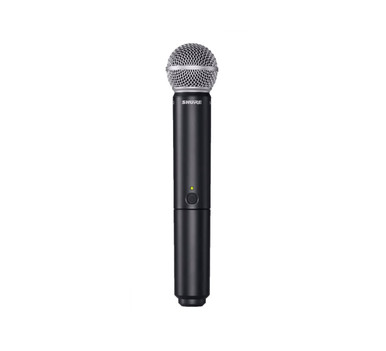

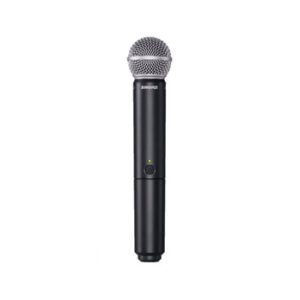

• 2x BLX2 Transmitter Power and battery status LED, Adjustable gain control, Quick and easy frequency matching, up to 14 hours of continuous use, 100 m operating range
• BLX88 Receiver Up to 12 compatible systems (region dependent), Microprocessor-controlled internal antenna diversity, One touch QuickScan locates the best open Frequency, 1/4" and XLR audio outputs

What is the SM58 best suited to?

It’s an ideal choice for a professional vocal artist in any live performance setting. It is tuned to accentuate the warmth and clarity of lead and backing vocals.

Even in extreme conditions, the SM58 is tailored to target the main sound source while minimizing background noise. It is also very popular with djs and presenters in clubs and in small and large live venues.

Can it withstand the rigours of touring?

Durable construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

What receiver comes with the  PG Wireless Dual Vocal System?

The PG Wireless Vocal System comes with the Analogue Wireless Dual Receiver BLX88 that provides improved linearity and frequency response.

The receiver BLX88 is ready to perform right out of the box and is the clearest choice for performers who wish to unplug.

How many musicians can use this system simultaneously?

Up to 12 compatible channels per group with group and channel scan for easy set-up.

Why internal antennas?

For ideal signal strength, antennas on a wireless system need to be set up in a certain way. The internal antennas on the BLX receiver are already set in this ideal way, offering up to 100 m operating range and optimal signal strength.

Additionally internal antennas cannot be broken during setup, use or transport.

Is the setup really that easy?

Yes, with one button you can start the group and channel scan, which gives you the best open frequency. Adjust the transmitter to the same channel and you’re ready to go.

What does "Linearity" mean?

The proportion between input signal of the transmitter and output signal of the receiver is always constant.

How does the BLX Receiver perform compared to wired?

The frequency response of the wireless microphone is almost identical to the frequency response of a wired mic. Also the dynamic performance is almost the same.

What's the difference between the old and the new "PG Wireless System"?

With the old PG Wireless System “PG” is the name for the microphones as well as for the receivers. With the new system, the name “PG” stands for the whole line of microphones in differentiation to SM and Beta microphones. The receivers name is “BLX”. This receiver is also part of SM and Beta Wireless Systems.

The new PG Wireless Systems come with the Analogue Wireless Receivers that provide improved linearity and frequency response as well as up to 12 compatible channels per group with group and channel scan for easy set-up.

Technical Specifications

• Working Range: 91 m (300 ft) Line of Sight
• Audio Frequency Response: 50 to 15,000 Hz
• Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical
• Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
• Weight: 7.7 oz. (218 g) without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

• Output Impedance
• XLR connector Output Impedance: 200 Ω
• 6.35 mm (1/4") connector Output Impedance: 50 Ω
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50  dB, typical
• Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
• Weight: 15.1 oz. (429  g)
• Housing: Molded ABS
• Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
