Description
Conduit is a premium, easily-configurable, ultra-reliable MIDI interface that will work with just about any quarter-inch MIDI-equipped effects pedals that you have. It also offers the best USB computer connection available for any TRS MIDI pedal!
Key Features
- Bi-directional TRS MIDI interface
- 4 independently-configurable TRS jacks
- Send preset changes to your entire pedalboard!
- Build presets for each song using all of your pedals
- Ready to plug and play with Strymon pedals
- Easily configurable for other pedal types
- Link Conduits together to control more pedals
- Use Conduit as a USB MIDI interface
- Quiet opto-isolated operation
- Designed and built in the USA
Smart MIDI Control Distribution
Each of Conduit’s four bi-directional TRS jacks are independently configurable to work with most quarter-inch MIDI equipped pedals. Built-in grounding isolation ensures the quiet operation you expect from Strymon. And for pedals that only need to receive MIDI, Dual Mode allows you to connect two pedals to a single TRS output using an optional TRS splitter cable.
USB MIDI Interface For Your Pedals
Conduit is designed to be a rock solid USB MIDI interface between your computer and your pedals. Send MIDI control change messages from a sequencer for perfectly synced pedal parameter changes. Automate pedal preset changes, load and save presets, or send SYSEX messages—all from your computer.
Easy to Set Up, Easy to Use, Plug In & Go!
Out of the box, Conduit’s 1/4″ TRS MIDI jacks are configured to work with Strymon pedals—just plug and go! Other configurations are easily selectable with no DIP switches, no custom cables, and no screwdriver required. Need more TRS MIDI outputs? Just link another Conduit!
Specifications

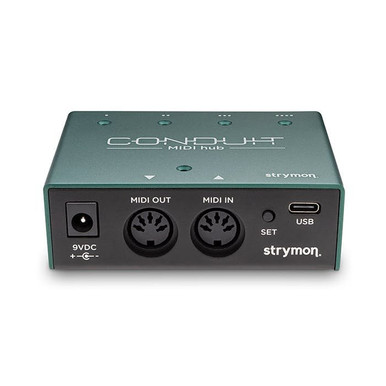

- One opto-isolated 5-pin DIN MIDI interface (IN and OUT ports)
- Four 1/4″ TRS bi-directional MIDI ports
- Five MIDI status indicator LEDs
- One USB Type-C to USB-A Male cable
- Lightweight, compact anodized aluminum chassis with threaded mounting hardware
- Weight: 5 oz (141 g)
- Dimensions: 2.63″ deep x 3.5″ wide x 1.2″ tall (7.2 cm deep x 9 cm wide x 3.8 cm tall)
