Description

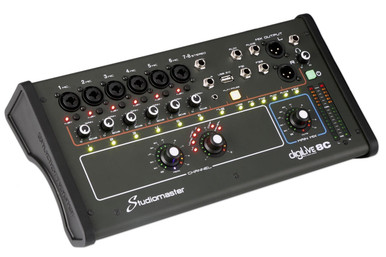

Studiomaster's Digilive 8C mixer is an all-in-one, 8-channel digital mixer that's the perfect solution for your large band performances.
Portable & Robust
The compact design of the unit makes it incredibly portable. You'll be able to transport it easily with the rest of your gear. A robust construction makes it incredibly durable too; it'll withstand the rigours of the road, becoming an essential component of your live gigging rig.
Streamlined Controls
A simple set of controls makes the Digilive 8C simple to operate. You'll be able to tailor your sound using just the knobs on the front panel, tweaking parameters to suit your requirements. This can also be done over Wi-Fi via a tablet or phone if you prefer hands-free operation from a distance. You won't have to download any software either! Just connect and get going.
Additional features include a 4-band parametric EQ, analogue styled effect/bus routing and premium compression and gate dynamics. These can all be harnessed if you want to get even more creative with your live sound.
Versatile Connectivity
Boasting mic inputs, XLR outputs, headphones/aux outs, and even USB compatibility (for recording and playback), you have a range of versatile connections available at your fingertips.
Features
- Compact, robust build.
- Balanced output/input sockets.
- Analogue style operation.
- Intuitive controls all located on the front panel.
- Assignable footswitch input.
- x4 effect busses.
- Multi-platform; compatible with your laptop, phone or tablet.
- Connect to your devices via LAN or Wi-Fi
- 8 inputs, 1 stereo (L/R), 6 mic.
Specifications
- Inputs: 8 analogue inputs
- Mic Input: 6 Mic/Line Combo XLR/Jack
- Line Input: 1 Stereo Jacks/3.5mm mini Jack
- Master output: 2 Left/Right balanced XLR
- Internal busses: 4 stereo FX / 2 mono AUX / stereo PFL / Main Mix
- Stereo Monitor: 2 TRS Jack output
- Headphone: 1 TRS Jack output
- Control Interface: Full mix from 3 rotary encoders
- Sample Frequency: 48 KHz
- AD/DA: 48KHz, 24-bit
- DSP: 40-bit float point, SHARC processor
- Remote control: Cross platform – Any device with Wi-Fi / Lan and web browser
- Effects: 4 – programmable DELAY x2 and REVERB x2
- USB Interface: 2 for playback/recording, scene storage and system updates
- Network: yes via WIFI external module or RJ45 LAN connection
- Power: 90-240V ~ 50/60Hz power supply 12VDC output
- Weight: 8kg
