Description

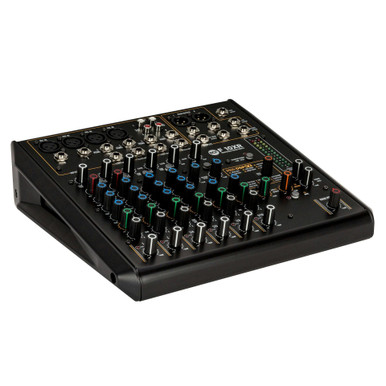

The RCF F series mixers are designed to offer high-quality sound in a straight-forward, affordable unit. The RCF F 10XR is on the smaller end of the series featuring 10 channels, four mic preamp inputs, two mono line inputs, four stereo line inputs, onboard PRO DSP FX as well as stereo recording and playback via USB.
This mixer is ideal for small acts where you only have a few vocals or instruments to mic up. The onboard pro digital signal processing (DSP) effects include reverbs, delays, chorus, flangers, and echoes for giving your sound extra impact. The design of the RCF is very straightforward providing just what you need to dial in great sound without overwhelming you with extra unnecessary controls.
The RCF F 10XR also acts as a USB audio interface allowing you to record in stereo into a Digital Audio Workstation (DAW) with 2-channel playback so you can record in the studio or capture the magic of a live performance
The sturdy metal construction of the RCF mixers means they will stand up to the rigours of gigging and touring.
Here's What RCF Say About the F Series Mixers
Enhanced Analog Mixing Flexibility
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
State Of The Art EQ
State-of-the-art 3 band EQ on mono channels, 2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.
High Quality Peamplifiers
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.
F 10XR Features
- 4 Mic preamp inputs, 2 mono line inputs
- 4 Stereo line inputs
- PRO DSP FX onboard with 16 presets
- Stereo recording and playback via USB port
- 2 single control compressors
- Balanced main output +28 dB (Stereo XLR + TRS)
- 1 aux/FX (post)
- Sturdy metal chassis
- External universal power supply
- Designed and engineered in Italy
F 610XR Specifications
Auxiliary sends
- FX Post: 1
Compressors
- RCF Compressors: n° 2 Single Control compressors on channels 1&2
Electrical specifications
- Power Consumption (W): 18 W
- Power Supply: External
- Voltage Requirements: 100 V – 240 V
- Frequency Response: 20 Hz ÷ 20 kHz
- THD+N, 20dB Gain, 0DBU Out(% A-Weighted): <0,02
EQ
- Description: High:+/-15 dB @ 10 kHz Shelving, Mid:+/-15 dB @ 1,250 kHz, Bell Low:+/-15 dB @ 100 Hz Shelving.
- Input Channels EQ: 2 Shelving / 1 Generic
Inputs
- Gain Range: 0 dB ÷ -50 dB
- Gain Selection: 20 dB ÷ -30 dB
- Mic Inputs Impedance (kohm): 14 kohm
- Line: 2
- Line Input Impedance (kohm): 21 kohm
- Low Cut: 80 Hz
- Mic: 4
- Phantom Power +48V: Yes
- Stereo Line: 4
- Stereo Line Gain Selection: 20 dB ÷ -30 dB
- Stereo Line Input Impedance: 15 kohm
Internal Effects
- Send Effects: 1
Other Features
- Footswitch: Yes
Outputs
- Aux Output: 1
- Control Room: Yes
- FX Send: 1
- Main Mix: 1
- Phones: 1
Outputs Specifications
- Aux Out Level (dBu): 28 dBu
- Main Out Level (dBu): 28 dBu
- Phones Out Impedance (Ohm): 150 ohm
Physical Specifications
- Cabinet/Case Material: Metal
- Color: Black
Size
- Depth: 275 mm / 10.83 inches
- Height: 82 mm / 3.23 inches
- Weight: 2.8 kg / 6.17 lbs
- Width: 294 mm / 11.57 inches
USB Audio
- Play Trk: 2
- Rec Trk: 2
- Supported Sample Rate (kHz): 44.1, 48.0
- Type: B
