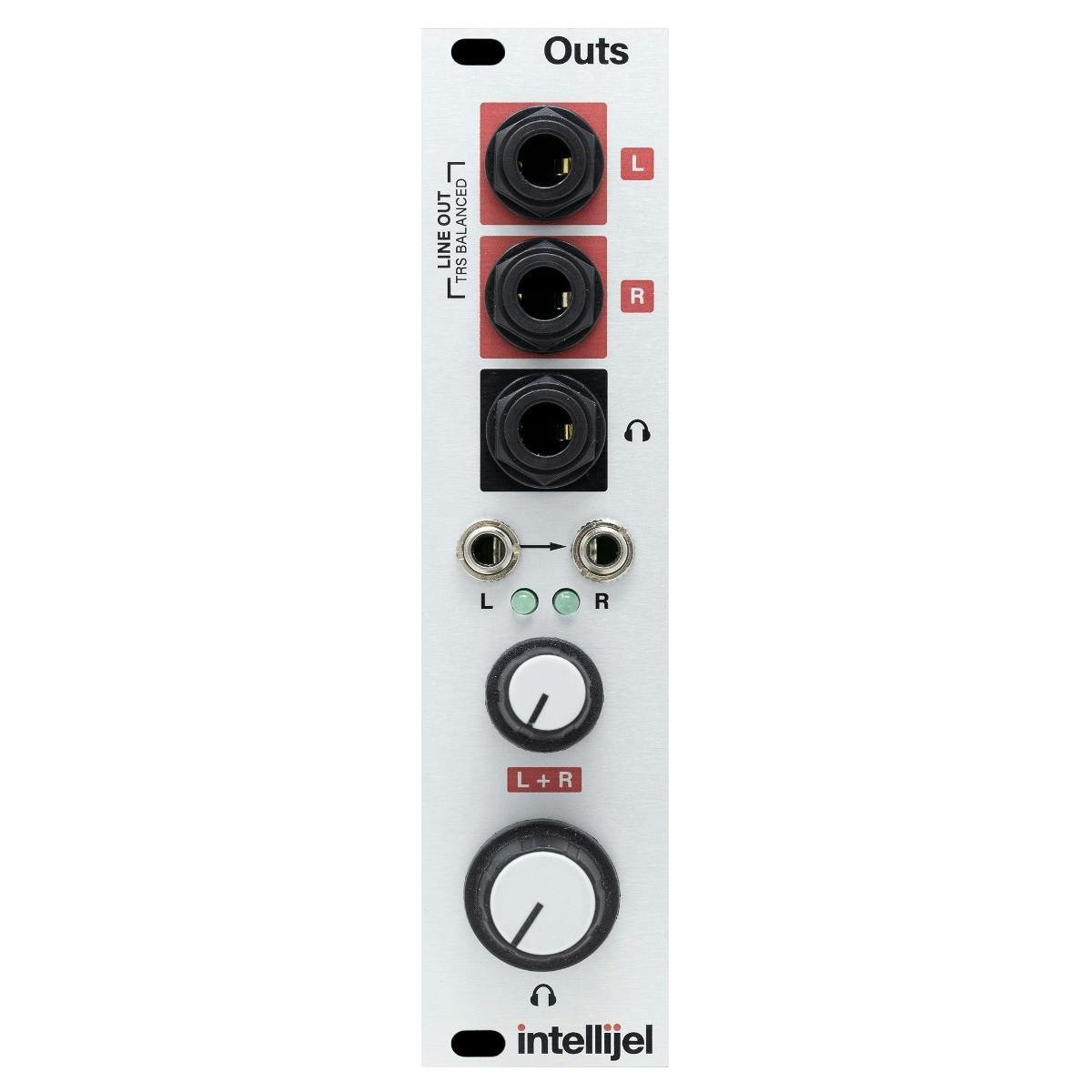

Intellijel Outs Balanced Stereo Line & Headphone Output Eurorack Module

£135.00

Here's what Intellijel says about the Outs: Get out of my rack, and into my? Record everything. You never know when you're going to hit that groove and when you do you'll be glad you captured it. Eurorack signals are really hot — tame them down to line level for your mixer, amp, or recorder. […]

More in , ,
More in , , ,
More Gear from

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.


Description

Here's what Intellijel says about the Outs:

Get out of my rack, and into my?

Record everything. You never know when you're going to hit that groove and when you do you'll be glad you captured it. Eurorack signals are really hot — tame them down to line level for your mixer, amp, or recorder. Monitor your patch thought the low noise headphone amp.

Get Out!

Outs enables your modular system to output both professional and prosumer compliant audio, and send it to external amplifiers, mixers, recording devices, or DAW interfaces. Using the L+R Level knob, it scales modular-level voltages down to the level required to drive external gear at either the +4dBu balanced professional line-level standard or the -10 dbV unbalanced standard.

Headphone monitoring is also provided via a low noise built-in headphone amp with its own independent level control, capable of driving a wide range of impedances — from studio grade headphones to portable style earbuds.

To use Outs, simply connect the final output of your patch to the ⅛” inputs. The built-in activity LEDs light up to indicate the presence and intensity of the input signal. The left input is normalled to the right, so you can create a stereo signal from a mono source. Or if you have an Intellijel Mixup, you can remove a jumper from its rear panel, and connect it to the Outs module using the 3-pin link cable included with the Mixup.

Features

  • Studio grade low noise audio.
  • Headphone amp capable of driving high impedance headphones via  1/4″ stereo Neutrik jack.
  • Two channel, +4dBu balanced line level outputs on TRS 1/4″ Neutrik jacks (fully compatible with -10 dbV unbalanced audio gear).
  • Left input is normalled to the Right input, allowing a mono input signal to drive both stereo output channels.
  • LEDs to monitor the modular-level signal sent into the device.
  • Attenuator knob for the line out level, plus a separate volume control for headphones.
  • 3-pin link connector on the back for connecting the output of a Mixup module directly to the Outs module.

Specifications

  • Width: 6HP
  • Depth: 34.5mm
  • Power: 37mA @ +12V, 29mA @ -12V
