Description

The Intellijel Atlantix 3U Eurorack Module is New Delivered to all areas of the UK using our roadie delivery service.

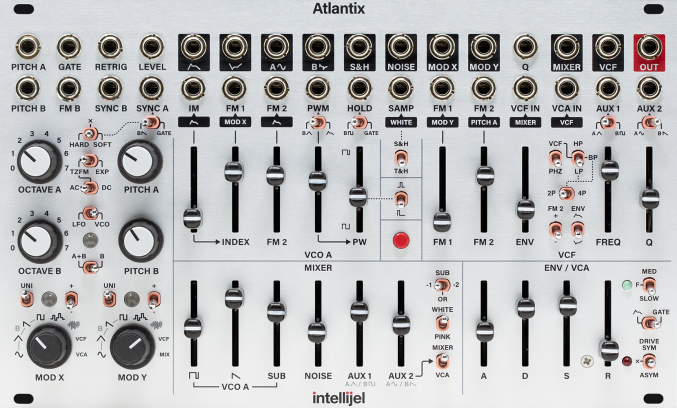

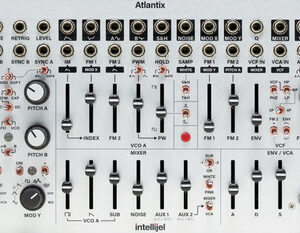

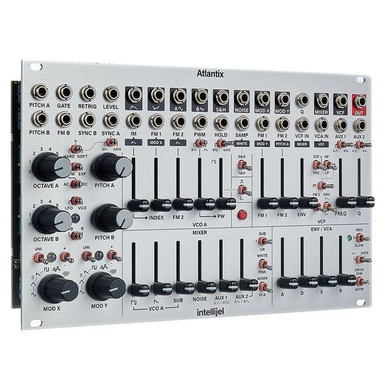

The Atlantix is a powerful 42HP analogue synthesiser module inspired by the legendary Roland SH-101. Designed for rich basslines, expressive leads, and entirely new sonic textures, it delivers a full subtractive synthesis voice with dual VCOs, a cascaded 4 pole multimode filter, and a comprehensive modulation matrix. With 32 patch points, six channel mixing, and multiple modulation buses, it offers deep sound design potential and hands on control.

Its triangle core oscillators feature FM, sync, PWM, sub oscillators, and noise sources, providing extensive tonal variety. The multimode filter includes low pass, band pass, high pass, and phaser modes, alongside onboard distortion for added character. With an analogue ADSR envelope, manual gate, and flexible routing options, the Atlantix is a highly versatile module for both traditional and experimental synthesis.

Key Features:

• Dual VCOs with Flexible Modulation:
  Two triangle core oscillators with sync, FM, PWM, sub oscillators, and noise sources allow dynamic and powerful sound shaping.
• Cascaded Multimode Filter:
  A 4-pole filter offering LP, BP, HP, and Phaser modes, complemented by onboard distortion for added tonal edge.
• Comprehensive Hands On Controls:
  20 sliders, 4 knobs, 27 toggles, 2 rotary switches, and 32 patch points provide deep and intuitive control.

Analogue Power and Versatility:

At the heart of the Atlantix are its two analogue VCOs, which deliver warm and punchy tones. With flexible FM, sync, and PWM options, these oscillators can be shaped to produce everything from classic basslines to intricate evolving textures. The inclusion of a sub oscillator and noise sources ensures a thick and dynamic sonic foundation.

Advanced Sound Shaping:

The Atlantix’s cascaded multimode filter offers remarkable tonal versatility, featuring low pass, band pass, high pass, and phaser modes. Whether creating smooth, resonant sweeps or aggressive, distorted textures, this filter is an essential tool for shaping and refining your sound. The onboard distortion module further enhances the harmonic richness and character of your patches.

Modulation and Connectivity:

With an extensive modulation matrix, the Atlantix offers deep sound design possibilities. The Mod X/Y buses include level and polarity switches, providing precise control over modulation routing. The six channel mixer allows for auxiliary inputs and flexible signal blending, while 32 patch points ensure seamless integration with other Eurorack modules.

Specifications:

• Filter: 4 pole multimode with LP2, BP2, LP4, BP4, HP4, Phaser
• Oscillators: 2 triangle core VCOs with sync and FM
• Mixer: 6 channels with aux inputs and routing options
• Modulation: Mod X/Y buses with level/polarity switches
• Envelope: Analogue ADSR with manual gate and level input
• Outputs: Symmetric/asymmetric distortion modes
• Expansion: Optional Atlx expander adds 16 additional patch points
• Size: 42HP Eurorack module with 32 patch points
