Description
Explore the Intellijel Quadratt 1U – Quad Attenuverter – Eurorack Module from Intellijel. Below you will find product details, specifications and images to help you decide whether it is right for your setup.

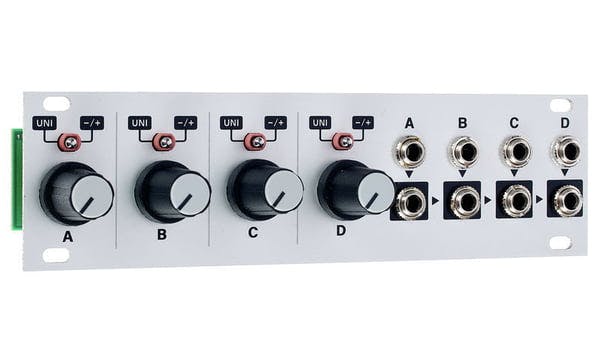

The Quadratt 1U is a Quad Attenuator, Attenuverter, mixer and DC Voltage Source all in one.
Dial In
Each of the four knobs can operate as an active attenuator, or an attenuverter. This is all down to the setting of the two-position switches. These are handily located above each dedicated channel.
Every single input has been normalled to a highly accurate +5V DC voltage. You'll be able to use this to your advantage, as it's perfect for creating performance-based macros within your patch. This allows you to control a selection of different parameters with just one knob.
Cascading
You can blend together up to four channels, add an offset to your signal, or create a stereo mix thanks to channel cascade operating from left to right.
Features
- 5v normalled to every input.
- 2 modes available for each channel (Bipolar and Unipolar).
- Every output is normalled to the mix into the adjacent channel. This allows for sub mixes in groups of 2, 3, or 4.
- Active, Buffered Attenuator, Attenuverter and Mixer with external signals.
Specifications
- Width: 28HP
- Depth: 25mm
- Power: 24mA @ 12V, 23mA @ -12V
