Description

The Intellijel Rainmaker 16-Tap Stereo Spectral Rhythm Delay And Comb Resonator is New Delivered to all areas of the UK using our roadie delivery service.

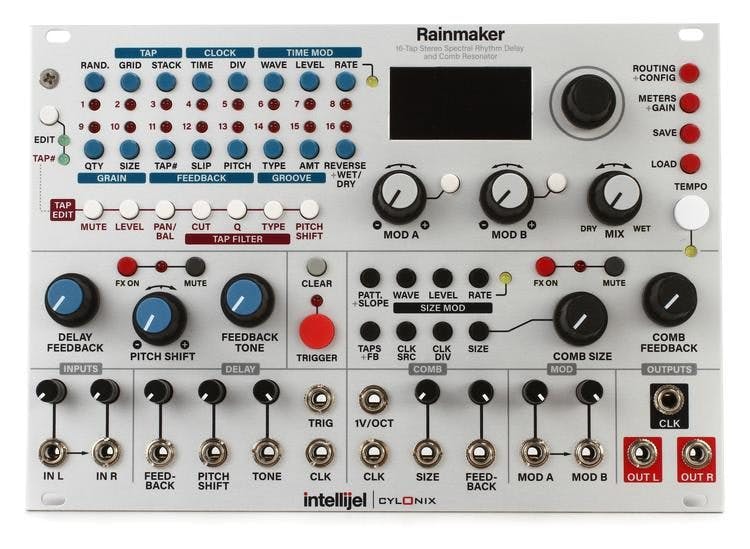

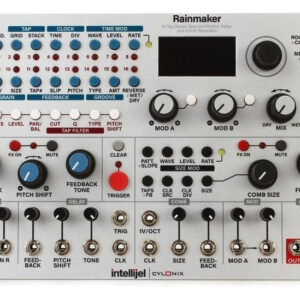

The Rainmaker is a 16-Tap Stereo Spectral Rhythm Delay and Comb Resonator.

Here's What Intellijel Say About the Rainmaker:

From Trickle to Torrent

Rainmaker is a deluge of a delay module made up of two main sections: Rhythm and Comb. In the Rhythm Delay section, exhaustive control of all 16 taps is at your fingertips. You can set Levels, Panning, Filter Type, Cutoff and Q for each tap, and make many adjustments to their timing and behaviour.

The Comb section opens up further possibilities for complex comb filtering, along with resonator or reverb effects. Whether your patch needs some light showers, or something more torrential, Rainmaker has you covered.

Overview

The Intellijel/Cylonix Rainmaker provides a high-quality (96KHz sampling rate with 32-bit internal processing) stereo rhythmic delay and stereo comb resonator effect.

The Stereo Rhythm Delay has 16 taps, each with its own resonant 2nd-order filter and granular pitch shifter. The filters have independently adjustable resonance and cutoff frequency, and can be set to either lowpass, bandpass, highpass or bypass operation. The filters are also capable of self-oscillation, enabling modal synthesis techniques.

The granular pitch shifters have a range of 15 semitones up or 16 semitones down. Each tap can repeat at a rate value set in tap#’s in order to create regenerating echo effects.  The feedback signal has a lowpass/highpass tone control and its own pitch shifter. The tap delay times can range from 0.1 millisecond up to a maximum of 20 seconds. The overall delay times can be set with the rotary encoder, the tap tempo button, or synced to an external clock.

The Stereo Comb Resonator section has 64 time-delayed taps which are summed together. This produces a deep comb filter or resonating effect. At large comb sizes (long time delays) a multiple echo effect is produced. The density of the resonator can be varied from 2 to 64 taps. The tap with the longest delay time is fed back to the input.

High feedback levels, with short comb sizes, produce “Karplus-Strong” types of plucked string sounds. The relative timing of the 64 taps are set according to one of 16 different preset patterns, which provide different resonator timbres or echo rhythms. The comb size can be set either with the rotary encoder, an external clock, synched to the delay clock, or through a transposable 1v/oct input voltage.

The Rainmaker module has extensive voltage control capabilities. Direct voltage control is available for the delay feedback level and tone, the global pitch shift for all delay taps, the comb resonator size, and comb feedback level. There are two assignable modulation inputs, which can be assigned to different parameters in each preset.

A trigger input with assignable functionality can trigger built-in types of noise bursts, freeze the delay buffer, reverse the delay, randomize parameters, mute taps, and much more.

Features

• 16-Tap Rhythm Delay section with comprehensive control of each tap
• Comb Delay section with up to 64 taps controlled by preset patterns, slopes, and filters.
• Delay CLK IN, Comb CLK IN, CLK OUT and clock dividers allow for synchronisation with other elements in your patches.
• 96KHz, 24-bit (32-bit internal) signal processing
• Most parameters are controllable by external control voltages, either directly or through the two auxiliary modulation inputs (MOD A, MOD B)
• Audio-rate randomisation of all parameters, or selectable subsets of parameters
• 128 Preset slots with online preset librarian via Laser Mammoth and USB connectivity

Specifications

• Width: 36HP
• Depth: 44mm
• Power: 270mA @ 12V, 24mA @ -12V
