Description
On SynthForSale we are taking a look at the Intellijel Scales – Quantizer and Sequencer – Eurorack Module because it is in UK stock, if you are looking for new Synth Sequencer gear to add to your set up, then check this out now. Read More for ordering and latest prices from a UK retailer .

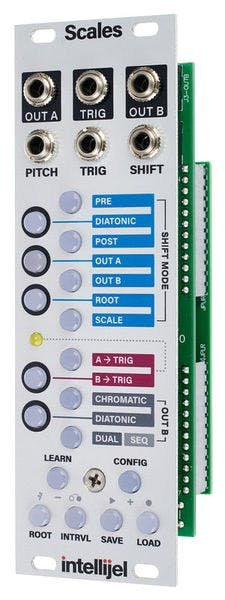

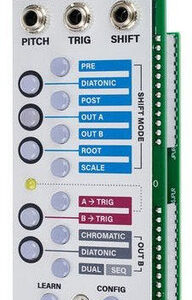

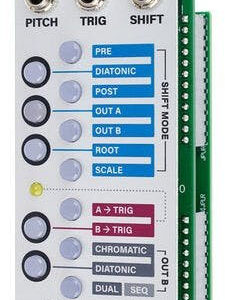

The Scales is a Dual Channel Note Quantiser and Sequencer.
How Does it Work?
Scales is based on an 8hp dual-channel note quantiser and step sequencer architecture. It works by taking an input voltage, quantises it to notes in any user-outlined scale and then delivers that quantised voltage to your output. When there, it can be harnessed as a melodic pitch generation for your oscillators etc.
You'll have a huge amount of control over your intervals and pitches. As well as this, you'll be able to morph LFO's into arpeggiators, unspecified voltages into harmonic counterpoint, plus a whole lot more.
Additional Extras
With two separate outputs, you can build shifted harmonic intervals (within a specified scale) using just one pitch input. The shift input can even be utilised to swap between scales on-the-fly, alter the root of a scale pattern, or separate Scales into two distinct quantisers.
There's even a 128-step SH-101 influenced sequencer. This can store up to 35 programmable patterns.
Features
- USB port for simple firmware updates.
- Root function: set root with or without shifting your current scale to match.
- Tuning mode: tune any connected VCO's.
- Learn function: monitor external inputs/sequences, learning notes from them.
- Low latency.
- Quick ARM processor.
- Input filtering removes glitches etc.
- Fully adjustable trigger delay.
- High-res accurate DAC allows for precise pitch generation.
- 35 factory scale patterns included.
- Save and then recall up to 35 scales/sequences.
- 1-octave keyboard lets you select scale notes in real-time.
- LED buttons deliver quick visual referencing of quantising.
- Shift/Pitch inputs and A/B outputs operate within a -10v to +10v range with a 1v/oct scaling.
Specifications
- Width: 8HP
- Depth: 39mm
- Power: 35mA @ +12V, 5mA @ -12V
