Description
The Intellijel Shifty CV/Gate Allocator/Shifter Eurorack Module is New Delivered to all areas of the UK using our roadie delivery service.

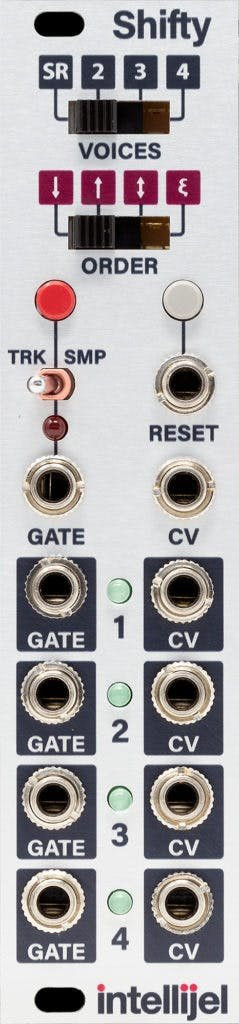

Here's What Intellijel Say About the Shifty
Patching is all about creativity. You could simply mult your sequence across your rack or let Shifty spread the notes across time, holding, swapping and routing them. Queue up notes or CV for distribution to up to four modules and dive into the world of hocketing, shift registers and pseudo polyphony.
Shift Expectation
Shifty is a combination of four sample and hold stages, a sequential gate, and a sequencer controller. This collection of functions allows for some inspiring and useful utility applications, such as clock dividing, or controlling up to four voices with intricately evolving melodies or chord changes.
Features
- Voice Allocation Mode alternately routes incoming CV and gates to up to four voices
- Shift Register Mode stores four incoming CV values and sends it to voices sequentially
- Choice of four different voice order directions
- Pitch outputs are driven by a precision quad DAC to avoid voltage droop
- GATE input can be toggled between track or sample and hold
- Manual GATE button for sampling/tracking and advancing the sequence
- Manual RESET button and jack
One of the primary uses for Shifty is to take a monophonic sequence source and route each new note of the sequence to up to four different synthesizer voices in a specific pattern. In this way you can create pseudo polyphonic sequences since each voice can be triggered to play and sustain while the next voice in the sequence is triggered. Another term for this is hocketing.
The other main application of Shifty is to function as an Analog Shift Register. In this mode each new gate input received causes the current set of pitches to be shifted to new output locations as a new one is added and the oldest one is replaced. This can be an interesting way to create chords that are up to four stacked notes when used with a pitch sequence source that has a harmonious series of notes (e.g. a pentatonic scale works really well). Even just using two of the outputs will yield very interesting melodic interplay and is an excellent way to make a simple sequence much more complex and interesting.
In a more basic way the Shifty could be used as a simple Sample/Track and Hold module, a clock divider, or as a sequential gate.
Specifications
- Width: 6HP
- Depth: 40mm
- Power: 4mA @ -12V; 49mA @ 12V
