Description
The Korg Nu:Tekt NTS-2 DIY Oscilloscope is New Delivered to all areas of the UK using our roadie delivery service.
The Nu:Tekt NTS-2 oscilloscope kit is a DIY multifunctional tool for musicians. Building on a 4-channel oscilloscope – monitoring control voltage (CV) and audio signals alike – NTS-2 also packs a flexible waveform generator, a spectrum analyser, and tuner functionality into a build-it-yourself device which fits in the palm of your hand!

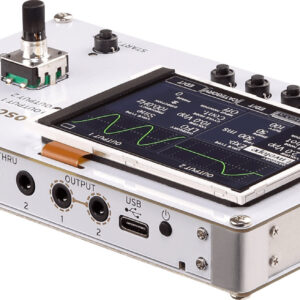

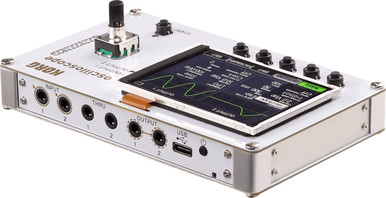

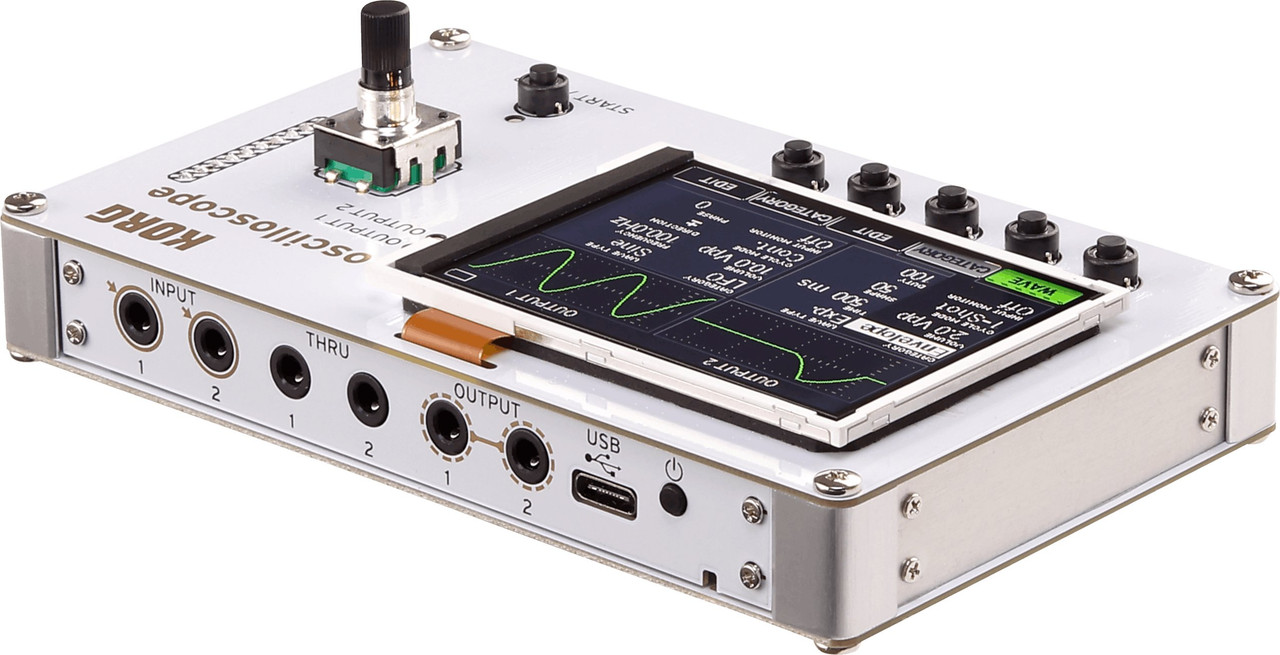

The NTS-2 kit is compact and easy to assemble with no soldering required, but don’t let its size fool you – it packs a real punch! It’s an oscilloscope, tuner, FFT, and spectrum analyser that is accurate, intuitive, and incredibly useful. But that’s not all – using its dual stereo IN, dual stereo THRU/OUT, and two separate OUTPUTs, you can wire it into your synth rig and use its dual waveform generators to give yourself an extra pair of oscillators or LFOs!
In this mighty little kit, you can find a 4 channel oscilloscope, EFT/Spectrum Analyser, Duel Waveform Generator and a Tuner.
Key Features:
- Tuner:
No utility kit would be complete without a tuner to make sure that you’re always in (Or out) of tune! - Dual Waveform Generator:
A flexible Wave Generator mode provides 2 oscillators with dedicated outputs. Each oscillator can create a variety of waveforms – sine, square, triangle, sawtooth, pulse, and noise whose shape and phase can be adjusted. These sounds can be used in the audio range or as control voltage sources, and they can be set to cycle continuously or act as one-shot impulses; that means you can turn them into LFOs, envelopes, triggers, and control voltage generators, as well as sound sources. - 4 Channel Oscilloscope:

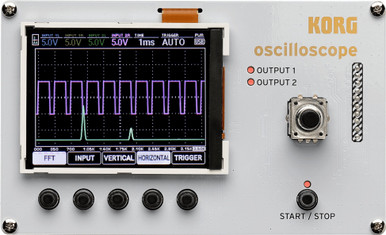

With dual stereo inputs, you can visualise up to four signals at once, comparing and overlapping them with ease. A variety of display modes let you choose how you see your data, while the user interface is clear and quick, thanks to its dedicated menu buttons and clickable encoder knob, and 240 x 320 pixel 2.8” colour LCD screen. NTS-2 even has a powerful “Lissajous” mode – opening the door to creativity and making it possible to visualise widely available oscilloscope art, for extra fun with your device.
Specifications:
- Oscilloscope:
– Modes: Single, Stereo (Input1L-INPUT1R, Input1L – Input2L, Input2L – Input2R), 4ch, XY(Lissajous, 2ch)
– Vert: 10mV~5V/div, AC/DC MODE switchable
– Horiz: 50us~1s/div
– Trigger: Auto, Rise, Fall, Single(rise), Single(fall) - Spectrum analyser:
– input: Mono (1L, 1R, 2L, 2R)
– Freq: 20Hz~20kHz - Tone generator:
– Types: Sine, Square, Triangle, Saw, Noise, Pulse, Envelope
– Freq: 1Hz~10kHz, Hz/NOTE mode switchable, [1ms~10s,sec/BPM switchable(pulse, envelope mode)]
– Output: 10Vpp max, V/dB mode switchable - Tuner:
– Modes: Needle, meter
– Input: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
– Calib: 410-480Hz
