Description
The Roland System-500 Series SYS-510 Eurorack Analog Synth Module is New Delivered to all areas of the UK using our roadie delivery service.
Vintage-style modular and Eurorack synths are coming back in a big way. Contemporary music trends have seen more and more musicians turn to the analog-inspired sounds of old, and manufacturers have responded in kind.
Roland are at the forefront of this trend, producing faithful reissues of some of their most popular releases in recent years and satisfying our renewed love for classic-sounding synth technology.
For 2018, they've decided to keep up the momentum with additions to their System-500 series. These compact modules are inspired by the legendary System-700 and System 100M series, aiming to provide never-ending modular synth fun in a handy, budget-friendly format!
The System-500 510

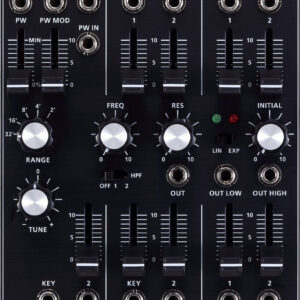

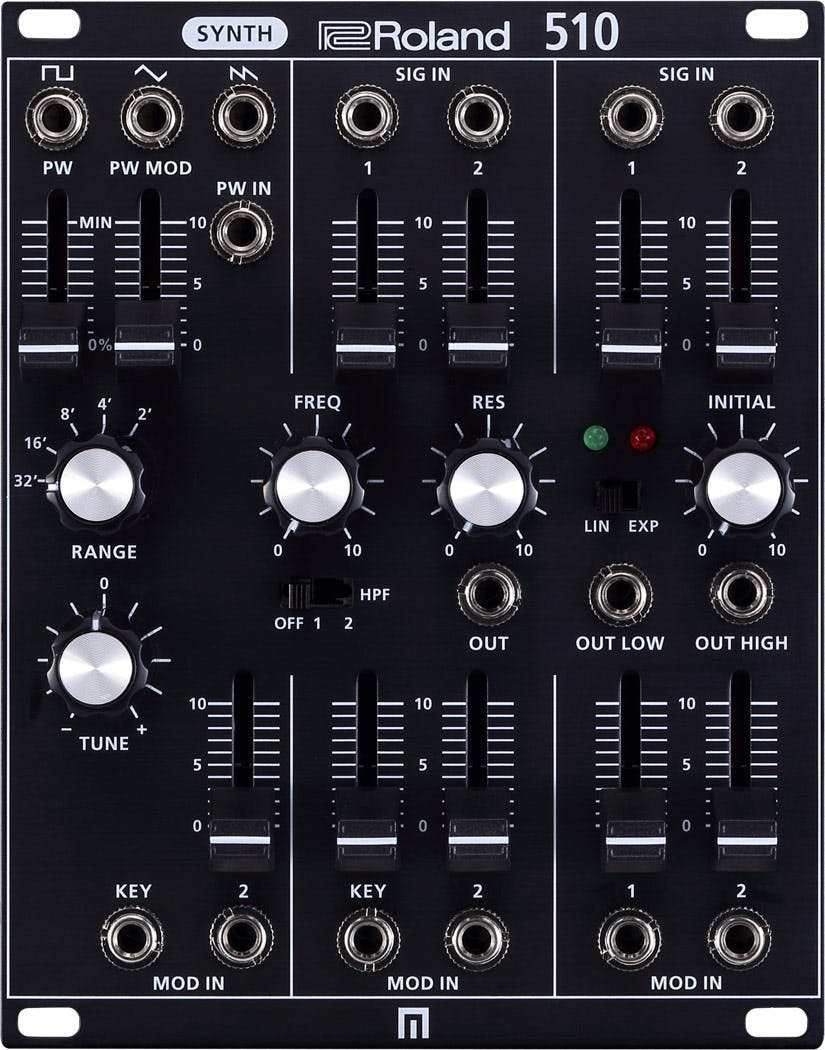

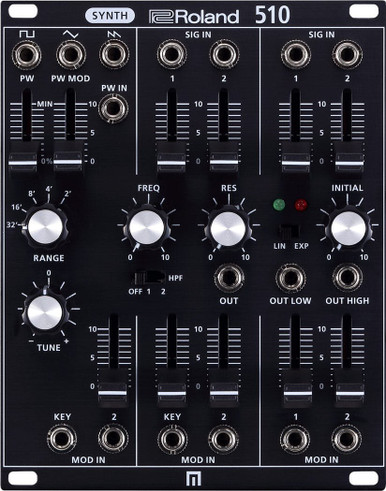

With the SYS-510, designing your first modular setup or integrating classic Roland sound into your existing modular rig has never been easier. Based on the vintage SYSTEM-100m's 110 VCO, VCF, and VCA module, the SYS-510 brings together the best aspects of the SYSTEM-500 into a single voice module. It contains three pristine oscillator waveforms, classic Roland low pass filter with hi-pass switches, and a VCA with multiple outputs. It has inputs for external signals and modulation, and output jacks for both Eurorack and line-level audio. At 20hp and internally normalled for cableless operation, the SYS-510 is an essential building block, whether you’re an experienced user or just diving into modular synthesis.
Specifications:
Controllers
- VCO PULSE WIDTH: slider
- VCO PULSE WIDTH MODULATION: slider
- VCO MODULATION IN: 2 slider
- VCO RANGE: knob
- VCO TUNE: knob
- VCF SIGNAL IN 1 slider
- VCF SIGNAL IN 2 slider
- VCF KEY IN slider
- VCF MODULATION IN 2 slider
- VCF HPF switch
- VCF FREQUENCY knob
- VCF RESONANCE knob
- VCA SIGNAL IN 1 slider
- VCA SIGNAL IN 2 slider
- VCA MODULATION IN 1 slider
- VCA MODULATION IN 2 slider
- VCA LINER/EXPONENTIAL switch
- VCA INITIAL knobIndicatorLOAD Indicator
- VCA OVERLOAD Indicator
Connectors
- VCO SQUARE WAVE jack: Miniature phone type
- VCO TRIANGLE WAVE jack: Miniature phone type
- VCO SAW WAVE jack: Miniature phone type
- VCO PULSE WIDTH IN jack: Miniature phone type
- VCO KEY IN jack: Miniature phone type
- VCO MODULATION IN 2 jack: Miniature phone type
- VCF SIGNAL IN 1 jack: Miniature phone type
- VCF SIGNAL IN 2 jack: Miniature phone type
- VCF OUT jack: Miniature phone type
- VCF KEY IN jack: Miniature phone type
- VCF MODULATION IN 2 jack: Miniature phone type
- VCA SIGNAL IN 1 jack: Miniature phone type
- VCA SIGNAL IN 2 jack: Miniature phone type
- VCA OUT LOW jack: Miniature phone type
- VCA OUT HIGH jack: Miniature phone type
- VCA MODULATION IN 1 jack: Miniature phone type
- VCA MODULATION IN 2 jack: Miniature phone type
- Power Supply: Eurorack power
- Current draw: 75 mA (+12 V), 60 mA (-12 V)
- Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Eurorack installation screws (4 pcs), Eurorack power cable
