Description
The Sequential Trigon 6 Module is New Delivered to all areas of the UK using our roadie delivery service.

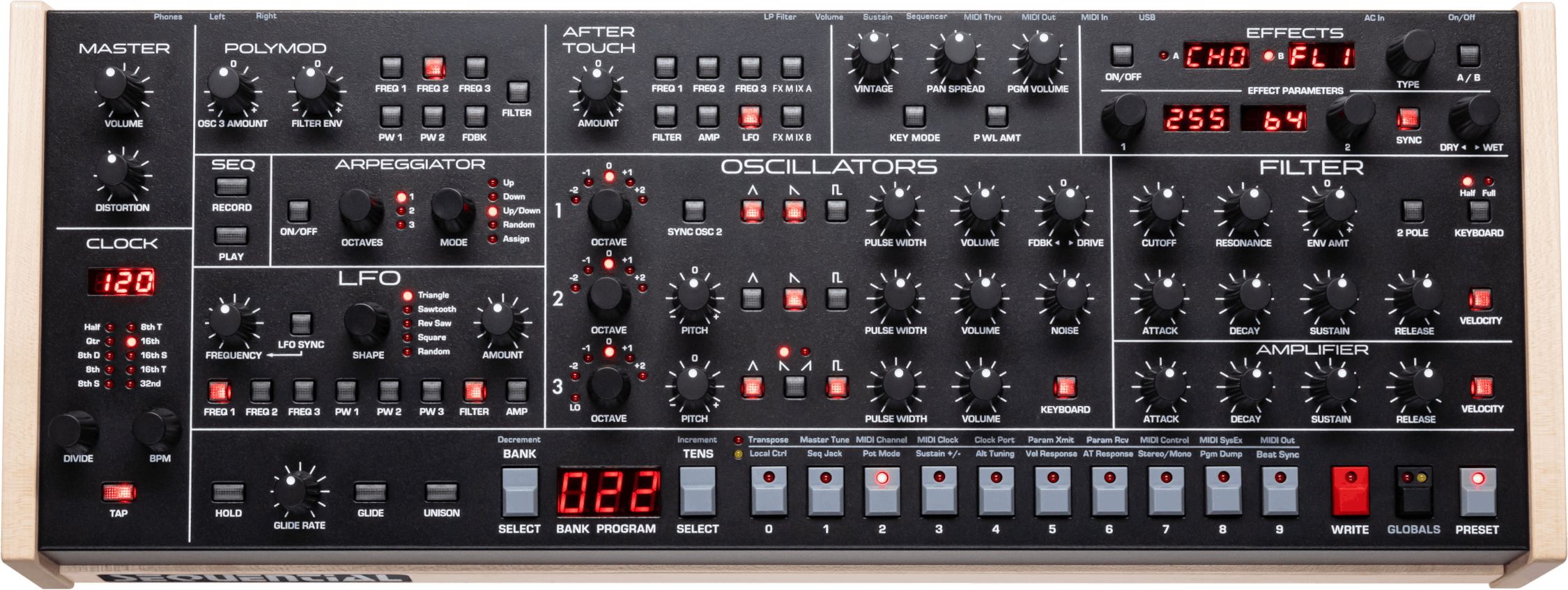

The Sequential Trigon-6 desktop module delivers the same massive sound and hands-on timbre shaping control as the Trigon-6 Keyboard. It features the same pure analogue signal path with discrete oscillators and filters, and the same high-quality digital effects. It also has the same intuitive layout with full-sized knobs and switches that make it quick and easy to create new sounds.
The Trigon-6 module sounds huge — just like the keyboard, because it is the same six voice polyphonic instrument, just in a smaller form factor. And if you want even more polyphony, you can use the poly chain feature to link any two Trigon-6s for a stunning twelve-voice synth!
The Trigon-6 is Sequential’s polyphonic take on the classic, thick and creamy, 3-oscillator-plus-ladder-filter analogue sound that defined the dawn of the synth era. It’s a sound that bridges genres and styles — now refined and redefined with Sequential’s own modern imprint.
Key Features:
- Adjustable Vintage Character:
Give even more classic organic warmth to an already classic synth, there’s the Vintage Knob, which adds voice-to-voice variations in calibration and component behaviour. Vintage response is adjustable from subtle to extreme to emulate the stability of a perfect modern instrument or a time-worn relic. - MPE Support!
This analogue beast is packed into a desktop module light enough to carry in a backpack. And with Trigon’s new MPE compatibility, this instrument is more playable and nuanced than ever before. MPE enabled synths allows for specific controls such as pitch bend, filter cutoff and amplitude per voice. - Duel Effects:
The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus, flanger, phaser, and ring modulator. The independent stereo distortion effect adds on-demand aggression and is 100% analogue.
Specifications:
- Polyphony: 6 Voices
- Oscillators:
– 3 Discreate VCO’s per voice
– Waves: Triangle, Sawtooth, Reverse Sawtooth + Variable Pulse Width
– Hard Sync: Oscillator 1 syncs to oscillator 2
– Oscillator 3: Keyboard tracking On/Off, LFO Mode
– Oscillator feedback and drive controls increase signal saturation - Low-Pass Filter:
– Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voice
– Filter can be driven into self-oscillation with the Resonance control
– Bi-polar filter envelope amount
– Velocity modulation of envelope amount
– Keyboard tracking: off, half, full - Envelopes:
– Filter + Amp Envelope: ADSR with Velocity modulation of envelope amount - Low Frequency Oscillator:
– Waves: Sine, Sawtooth, Reverse Sawtooth, Square, Sample + Hold
– LFO Sync
– Destinations: oscillator 1, 2, 3 frequency, oscillator 1, 2, 3 pulse width, filter cutoff, amp (VCA) - Vintage Knob: Recreates vintage synth characteristics by adding voice-to voice variations in component behaviour
- Effects:
– Stereo Analogue Distortion
– Reverb: Room, Hall, Plate, Spring (Dual 24-bit 48 kHz digital effect)
– Delay: Full Bandwidth Digital Delay and emulated bucket brigade (Dual 24-bit 48 kHz digital effect)
– Chorus (Dual 24-bit 48 kHz digital effect)
– Flanger (Dual 24-bit 48 kHz digital effect)
– Phase Shifter (Dual 24-bit 48 kHz digital effect)
– Ring Modulator (Dual 24-bit 48 kHz digital effect)
(When digital effects are off, fully analogue signal path) - Patch Memory: 500 User and 500 factory programmes (10 banks of 100 patches)
- Arpeggiator:
– Note Value: 16th, 8th triplet, 8th, dotted 8th + 1/4 note
– Octave: 3 octave range
– Pattern: Up, Down, Up/Down, Random + Assign Modes - Sequencer: Polyphonic 64 steps

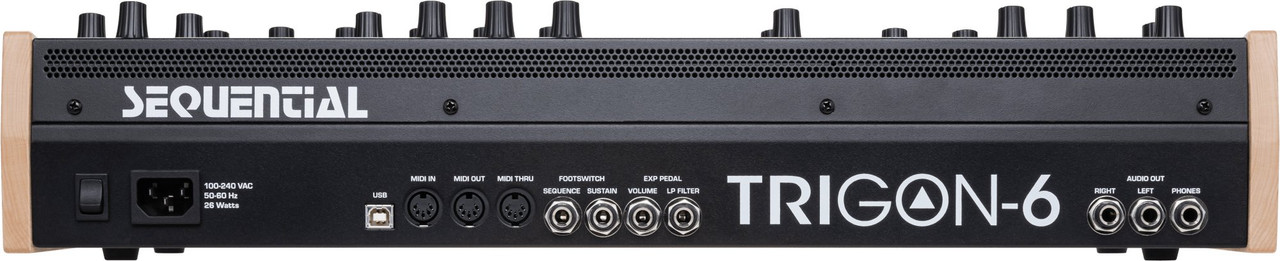

- Connections:
– Output: 2x 1/4″ TS Jack
– Headphones: 1x 1/4″ TRS Stereo Jack
– MIDI: IN, OUT + THRU 5 pin DIN, USB Type-B
– Expression Pedal: Volume + LP Filter TS 1/4″ Jack
– Footswitch: Sequence + Sustain 1/4″ TS Jack
– Power: IEC (kettle lead) AC socket - Power: IEC AC, 100V and 240V at 50hz – 60hz, 30Watts Maximum
- Dimensions:
– Length: 55.88 cm
– Width: 21.46 cm
– Height: 11.53 cm
– Weight: 6.35kg / 14lbs
