Description
The Studio Electronics Modstar 5089 Filter Eurorack Module is New Delivered to all areas of the UK using our roadie delivery service.
The Modstar 5089 offers the Studio Electronics recreation of the classic Moog discrete analogue voltage controlled low pass filter now made as a module for eurorack systems. Using hand matched transistors, the 5089 offers unsurpassed sonic quality and a range of tonal options.
Featuring a 24 db/oct transistor ladder low-pass filter, the 5089 offers a subtractive analog sound synthesis foundation. Studio Electronics say that the 5089 is “the roundest, slickest tone of all the Boomstar’s filters”, with a balanced and rich sound. It’s capable of warm creamy subtle tones, or you can crank it up for some seriously satisfying overdrive and rich saturation.
Get that awesome vintage 60’s and 70’s harmonic distortion and transform your patch with the 5089’s full range of parameters
The AMP, the 5089, and the 3003 are Class A circuits. They draw more current from the +12 rail than from the -12 volt rail. If the system power supply is under-sized, hum or buzz may be heard. In that case, larger filter capacitors and/or a larger power transformer will be needed. The 4075 draws equally from both rails, and is more immune to hum.
Specifications
Potentiometer Potential
Three attenuverter and four attenuation pots control the FREQUENCY, RESONANCE, FREQ CV 1, RESO CV, FREQ CV 2, INPUT and OUTPUT, delivering smooth, detailed, and complex expression.
Switch it Up
Classic Minimoog FULL and HALF strength filter frequency keyboard/voltage tracking for rounder low end with brilliant highs.
Patch it Up
Seven patch points: 1 V/O, FREQ CV 1, FREQ CV 2, RESO CV, INPUT and 2x OUTPUT direct the deepest manipulation.

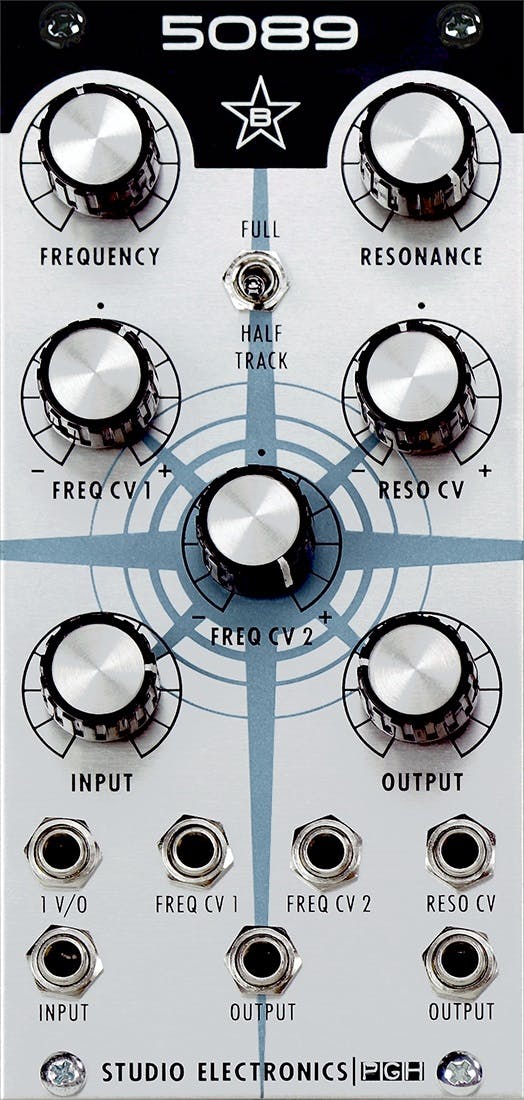

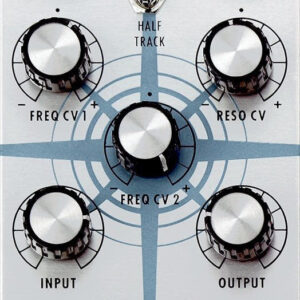

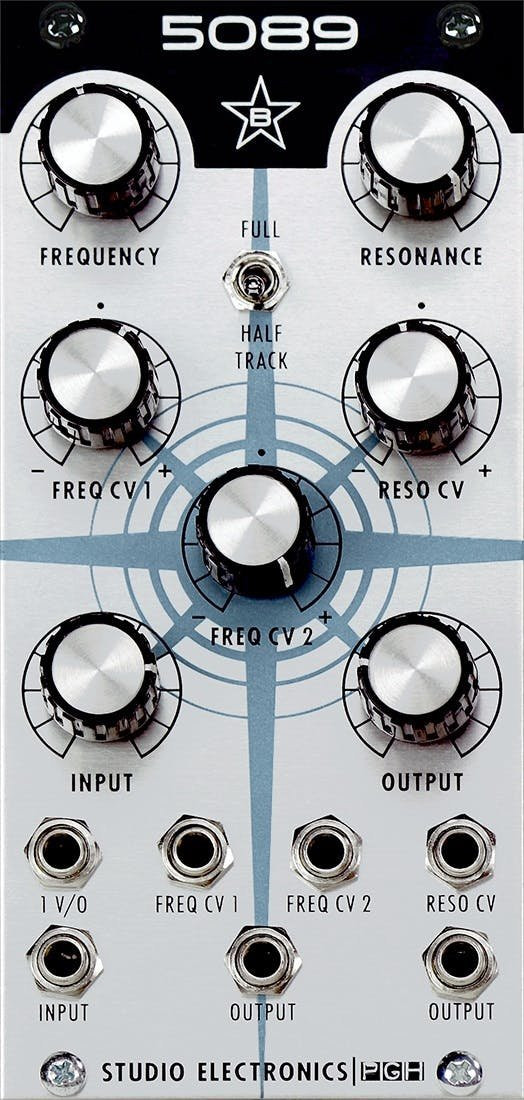

All Controls and Patch Points
FREQUENCY – Adjusts the frequency, or cut-off of the filter.
RESONANCE – Adjusts the resonance of the filter. *
FULL HALF TRACK – Switch between full and half keyboard/voltage tracking.
FREQ CV 1 – Frequency control voltage 1 input attenuverter.
RESO CV – Resonance control voltage input attenuverter.
FREQ CV 2 – Frequency control voltage 2 input attenuverter.
INPUT – Adjusts the audio input.
OUTPUT – Adjusts the audio output.
1 V/O – One volt per octave control voltage input.
FREQ CV 1 – Frequency control voltage 1 input.
FREQ CV 2 – Frequency control voltage 2 input.
RESO CV – Resonance control voltage input.
INPUT – Audio input.
OUTPUT x2 – Audio outputs.
Vitals
Size – 12hp
Depth – 39.7mm with ribbon cable attached
Power Usage – 40mA, 28mA (+12 / -12)
* From 7:00 (0) to 9:00 our “Negative Resonance Saturation” adds beefiness, boosting the waveform amplitude and taming waveform transients; set to 9:00 to achieve the cleanest tone possible.
