Description

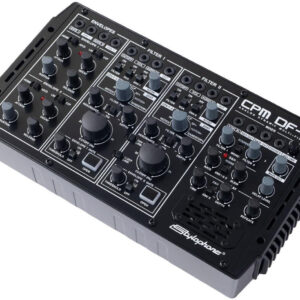

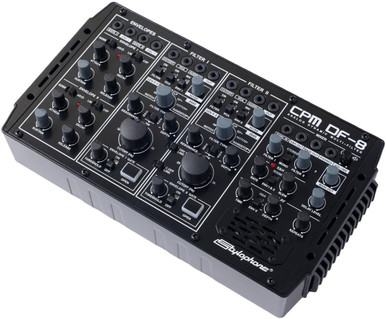

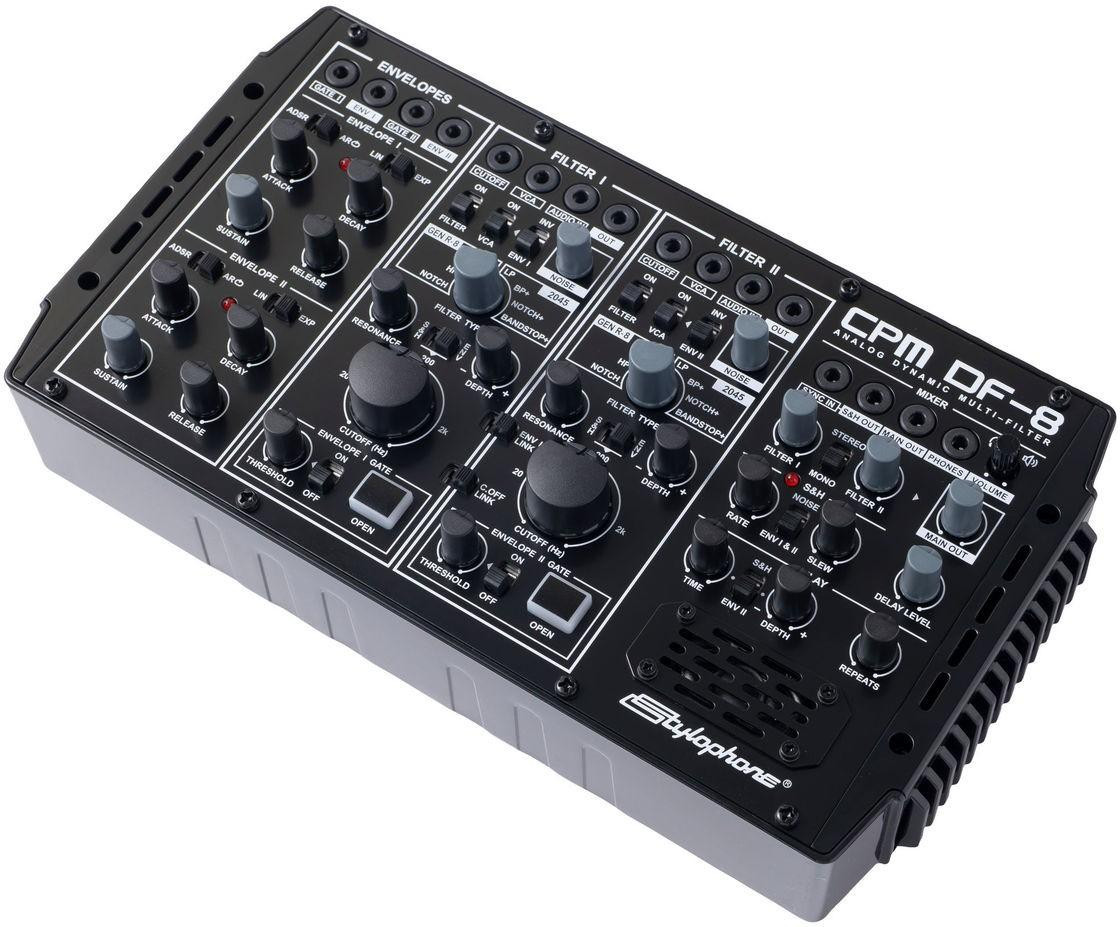

The Stylophone CPM DF-8 marks a bold step forward in portable modular synthesis, combining Dubreq’s signature character with remarkable sonic versatility. Following its highly anticipated debut at NAMM, this compact yet powerful filter and sound design module joins Stylophone’s acclaimed Compact Portable Modular (CPM) range. The DF-8 pairs a smooth analogue recreation of the classic 2045 Lowpass filter with the raw, expressive GEN R-8 filter, allowing musicians to craft everything from subtle textures to aggressive, dynamic tones. With eight filter types per channel, dual ADSR envelopes, and multiple trigger modes, the DF-8 delivers exceptional modulation flexibility. It is not just a dual filter, it’s a complete creative instrument. Featuring built-in noise generators, sample-and-hold modulation, and a vintage PT2399 delay, the DF-8 encourages deep experimentation and spontaneous creativity. Designed for studio or stage use, it can be powered by batteries, PSU or a Eurorack bus, and even includes a built-in speaker for instant monitoring. Compact, versatile, and expandable, the DF-8 is built to inspire.
Key Features
- Dual Analogue Filter Architecture:
Combines the smooth 2045 Lowpass filter with the expressive GEN R-8 multi-mode filter, offering eight filter types and three hybrid combinations for creative sound shaping. - Advanced Modulation and Control:
Two full ADSR envelopes, multiple trigger options, and auto-repeat modes provide flexible modulation control for evolving textures and rhythmic effects. - Portable Creative Power:
Features multiple power options, built-in speaker, and Stylophone’s lock-together design for expandable, portable modular setups suited for both studio and stage use.
Dual Filter Flexibility:
The DF-8’s dual analogue filters combine the elegance of a smooth 2045 Lowpass with the bold energy of the GEN R-8 multi-mode design. This pairing unlocks a vast tonal range, from silky warmth to aggressive resonance. Each filter can operate independently or together, offering unique combinations such as Bandpass+, Band Reject+, and Notch+ modes. With high resonance self-oscillation and eight filter types per channel, the DF-8 provides exceptional sound sculpting potential, ensuring it adapts seamlessly to any genre or creative approach.
Sound Design and Modulation Tools:
Beyond its filters, the DF-8 is a comprehensive sound design unit. It includes two white noise sources, a sample-and-hold modulation generator with adjustable slew, and a characterful PT2399 delay capable of subtle ambience or chaotic textures. Dual ADSR envelopes, flexible trigger options, and integrated VCAs make it ideal for shaping movement and dynamics. Whether used as a tone-shaping module, modulation hub or standalone sound source, the DF-8 excels in versatility and creative depth.
Compact and Expandable System:
Like all CPM models, the DF-8 embodies portability and adaptability. Its robust yet compact enclosure can operate on AA batteries, PSU or Eurorack power, making it perfect for musicians on the move. A built-in 2W speaker enables instant monitoring without additional gear, while its stereo outputs ensure professional-level integration. Stylophone’s signature side rib design allows units to interlock securely, forming a stable, expandable modular system. When paired with the CPM DS-2, the DF-8 becomes the ultimate compact modular setup for live performance or studio production.
Specifications
- 2 analogue multi-mode filter channels with self-oscillation
- 8 filter types per channel, including GEN R-8 and 2045 modes
- 3 combination filter modes: Bandpass+, Band Reject+, Notch+
- 2 ADSR envelopes with linear and exponential response
- 4 envelope trigger modes: CV, audio threshold, manual, auto-repeat
- 2 VCAs with envelope inverters and bypass switches
- 2 white noise sources with volume controls
- Sample and Hold modulation with sync and adjustable slew
- PT2399 delay with modulation control
- 14 modular patch points for audio, envelopes, filters, VCAs, and S&H
- 3-into-1 mixer with stereo or mono output
- 2 stereo outputs (line level or headphones) with volume controls
- Built-in 2W speaker for immediate playback
- Powered by 6 AA batteries, external PSU or Eurorack bus
- 42 HP Eurorack front panel format
- Compatible with other Stylophone CPM units
