Description
On SynthForSale we are taking a look at the Behringer 2600 Blue Marvin Analog Synth because it is in UK stock, if you are looking for new Synth gear to add to your set up, then check this out now. Read More for ordering and latest prices from a UK retailer .

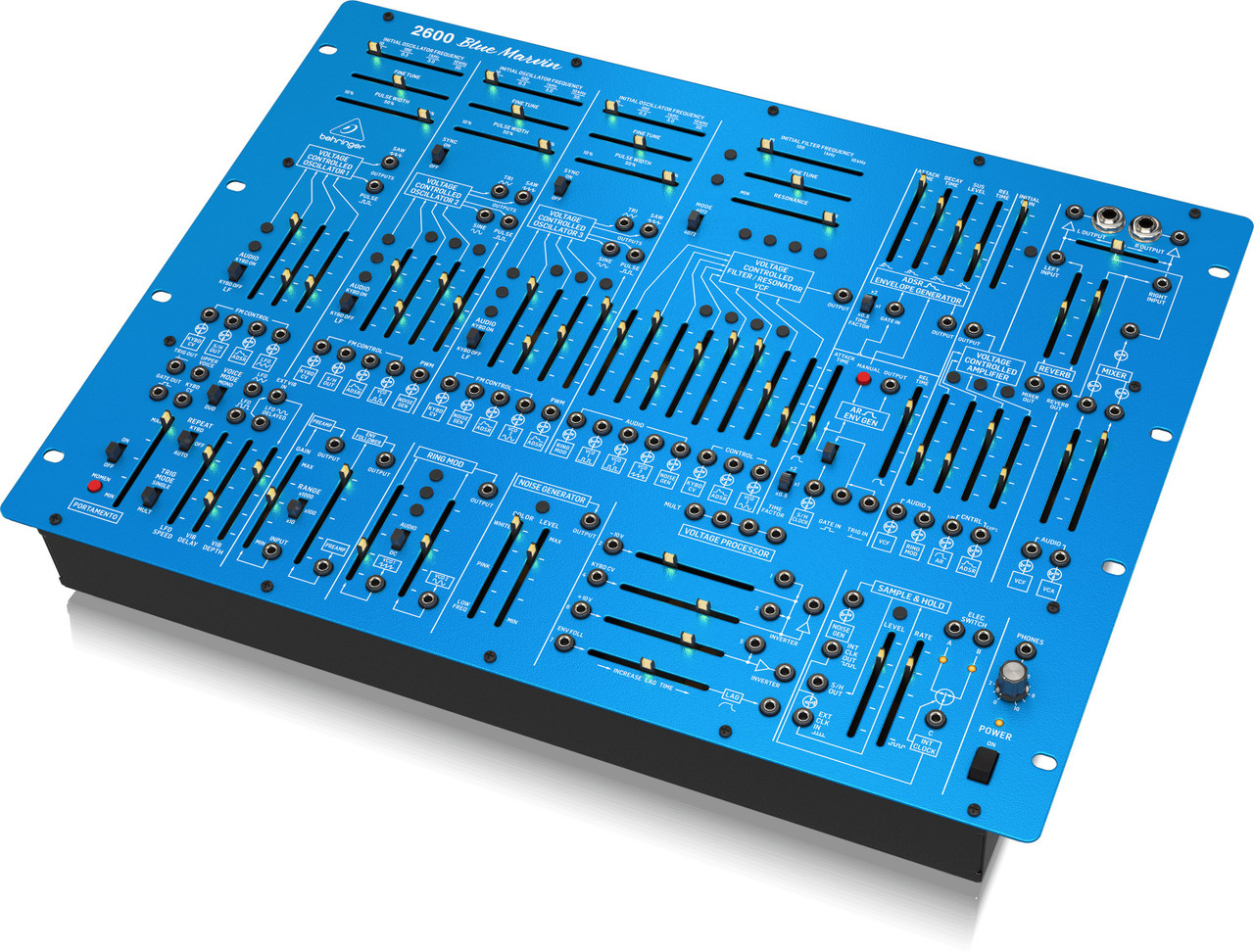

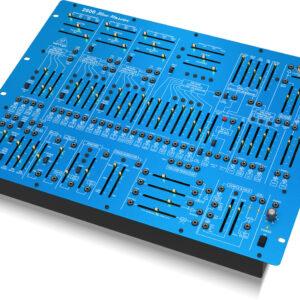

This is a special edition version of the 2600, featuring a mechanical spring reverb, unicolour LED’s, and finished in the same iconic Blue Marvin style of one of the first 2600 renditions from 1971.
Authentic Engineering
The 2600 features a pure analog signal path modelled on the original ’70s Arp 2600 circuitry, as well as a triple VCO architecture and semi-modular design. These engineering decisions deliver classic sounding tones from the era, from airy ambiences, to dynamic leads and thick, powerful bass.
Sound Creation
Your sounds are generated via the 3 VCOs (boasting FM inputs). Their default waveforms can be patched to triangle, saw, square, pulse, or sine – ensuring even more sonic options are available to you.
That’s not all though. Further creativity is made possible in the form of a filter mode switch, resonance control, sample and hold, a lag processor, ring modulator, envelope follower, Schmitt trigger, noise generator and more.
You’ll be able to add even more variety to your tracks via the built-in AR envelope generators and ADSR. Tweaking the level of release, sustain, decay and attack will provide dynamism to any sound.
*Please note that this Synth does not include any patch cables.
Specifications
VCO 1 / 2 / 3
- Frequency modulation (FM) control:11 x 3.5 mm TS jacks, CV range: -10 V to +10 V
- Pulse width modulation (PWM): 2 x 3.5 mm TS jack, CV range: -5 V to +5 V, 1 V/10%
VCF
- Audio: 5 x 3.5 mm TS jacks, 50 kΩ unbalanced
- Control: 3 x 3.5 mm TS jacks, CV range: -10 V to +10 V
- ADSR / AR envelope generator
- S&H clock: 1 x 3.5 mm TS jack, threshold: > 6 V
- Gate in: 1 x 3.5 mm TS jack, threshold: +4 V
- Trig in: 1 x 3.5 mm TS jack, threshold: +5 V
VCA
- Audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
- Control (linear): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V
- Control (exponential): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V
Mixer / Reverb
- Audio: 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
- Left / right inputs : 2 x 3.5 mm TS jacks, 50 kΩ unbalanced
LFO
- Ext vib in: 1 x 3.5 mm TS jack, 50 kΩ unbalanced
