Description
The Shure BLX24 with Beta 58A is a professional yet affordable wireless system. Featuring a Beta 58A capsule, handheld transmitter and a receiver, you'll be able to roam the stage with confidence during your next vocal performance or presentation. Set up is incredibly simple too; with just one button press, you'll get the whole process underway.
Beta 58A
This mic has been designed from the ground up to thrive during both live performances and studio recording sessions. The capsule features a slightly sweeter high-end that allows vocals to cut through the mix naturally. It also features a supercardioid pickup pattern, resulting in comprehensive feedback rejection and improved sound isolation. A meticulously engineered frequency response ensures your vocal will be accentuated, while increased sensitivity highlights the nuance and detail in your voice.

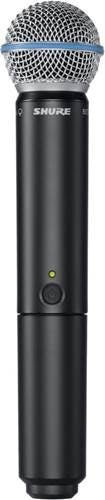

BLX2 Transmitter
Featuring adjustable gain control, effortless frequency matching, and a 100m operating distance, you'll be supported by one of the most reliable, rock-solid wireless systems in the business. And that's not to mention the 14 hours of battery life!
BLX4 Receiver
This receiver is the ideal choice for vocalists looking to unplug. Boasting much improved linearity and frequency response, plus one touch QuickScan tech (quickly locating the best current open frequency), the BLX4 analogue wireless receiver is ready to to perform right out of the box!
Included in the Box
- Beta 58A Capsule.
- BLX2 Handheld Transmitter.
- BLX4 Receiver.
- Rack Mount Kit.
Technical Specifications
- Working Range: 91 m (300 ft) Line of Sight
- Audio Frequency Response: 50 to 15,000 Hz
- Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
- Dynamic Range: 100 dB, A-weighted, typical
- Operating Temperature: -18°C (0°F) to 57°C (135°F)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
- Gain Adjustment Range: 10 dB
- RF Transmitter Output: 10 mW, typical
- Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
- Weight: 7.7 oz. (218 g) without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
BLX4
- Output Impedance (XLR connector): 200 Ω
- Output Impedance (6.35 mm (1/4") connector): 50 Ω
- Audio Output Level (XLR connector): –27 dBV (into 100 kΩ load)
- Audio Output Level (6.35 mm (1/4") connector): –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
- Weight: 8.5 oz. (241 g)
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
