Description

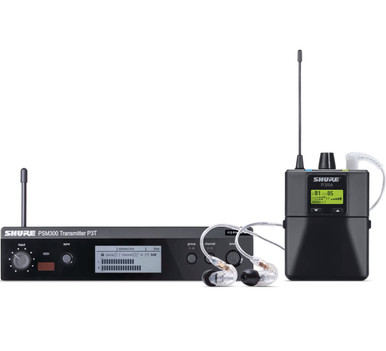

The PSM 300 Premium system offers the perfect in ear monitoring system to give you the sound you need anywhere on the stage. The system comes with the P3RA Premium wireless bodypack receiver and P3T Wireless Transmitter, delivering detailed 24-bit digital audio processing and a range of great features. This system also comes with the SE215 earphones that are discrete and offer the audio clarity needed when you're out on stage.
Key Features
PSM®300 Stereo Wireless Personal Monitor Systems
- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analogue RF connection over a 90 meter range
- Create a personal mix from the bodypack with MixMode® technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- Comes with SE215 Earphones

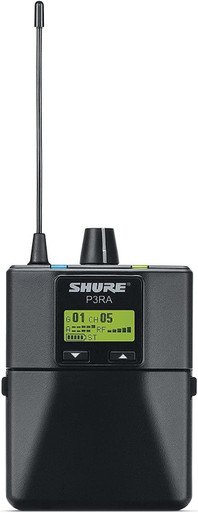

P3RA Premium Wireless Bodypack Receiver
- Rugged, all-metal construction
- High-contrast LCD screen with menu-based navigation
- 2-band shelving EQ with high and low boost
- Volume limiter sets the maximum gain level range for the volume knob
- MixMode® technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Frequency scan and IR sync quickly finds and assigns a clean channel
- 2 AA batteries provide up to 7 hours of continuous use
- Optional Shure SB900 lithium-ion rechargeable battery provides extended runtime
- Power and battery status LED
- 5-segment battery life meter
- Power save mode preserves battery life when earphones are not connected
P3T Wireless Transmitter
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to PSM300 receivers over a 300 90 meter range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- Up to 24 MHz tuning range (region dependent)
- ¼” (6.3 mm) TRS balanced inputs and loop outputs
- High-contrast LCD screen with left/right audio output meters
- Detachable ¼ wave antenna
- Selectable line/aux level
Included in the Box
- PSM®300 Premium Stereo Wireless Personal Monitor System
- P3RA Premium Wireless Bodypack Receiver
- P3T Wireless Transmitter
- Premium SE 215 Earphones
Technical Specifications
- RF Carrier Range: 488- 937.5 MHz
- Compatible Frequencies: Per band, up to 15
- Tuning Bandwidth: 24 MHz Maximum
- Operating Range (environment dependent): 90 m ( 300 ft)
- Audio Frequency Response: 38 Hz–15 kHz
- Signal-To-Noise Ratio: A-Weighted, 90 dB (typical)
- Total Harmonic Distortion: ref. ±34 kHz deviation @1 kHz <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: ref. 12dB SINAD, >80 dB (typical)
- Latency: <0.7 ms
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±1 Hz)
- Modulation: FM, MPX Stereo
- Operating Temperature: -18°C to +63°C
P3T
- RF Output Power: 10, 20, 30 mW
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 783 g(27.6 oz.)
- Dimensions: 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.), H x W x D
- Power Requirement: 12-15V DC, 260 mA Maximum
Audio Input
- Connector Type: 6.35 mm (1/4") TRS
- Polarity: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 40 kΩ (actual)
- Nominal Input Level: switchable: +4 dBu, –10 dBV
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
Audio Output
- Connector Type: 6.35 mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
P3R
- Active RF Sensitivity: at 20 dB SINAD, 2.2 µV
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power: 1kHz @ <1% distortion, peak power, @32Ω, 40 mW + 40 mW
- Minimum Load Impedance: 4 Ω
- Headphone Output: 3.5 mm (1/8″) stereo
- Output Impedance: <2.5 Ω
- Net Weight: 98 g(3.5 oz.) (without batteries)
- Dimensions: 110 x 64 x 21 mm H x W x D
- Battery Life: 5–7 hours (continuous use) AA batteries
