Description

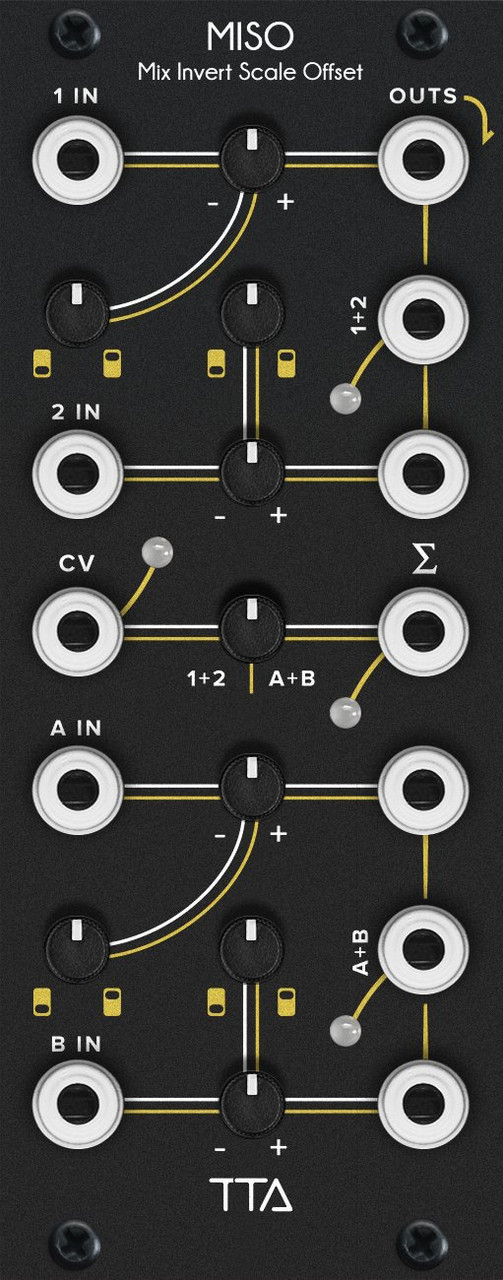

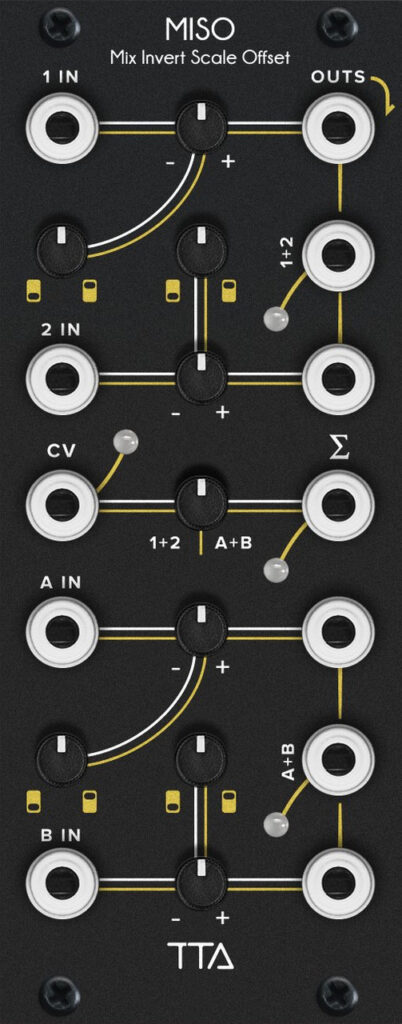

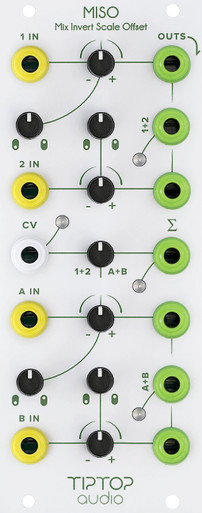

MISO is a multipurpose utility module, a laboratory for synthesizing control voltage signals and audio. MISO combines multiple CV tools into one module for making complex CV shapes at the output stage. The name comes from the four main functions available: Mix, Invert, Scale, and Offset.
MISO’s 2 sections (1/2 IN and A/B IN) are identical. Each section has two inputs that can be used to Mix signals, Invert polarity/shape, Scale magnitude and Offset voltage. Each function can be used independently or simultaneously with the total shape summed to the mix output.

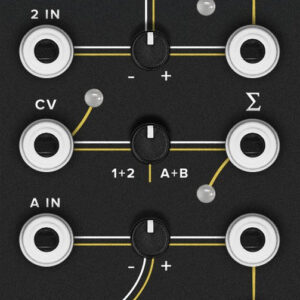

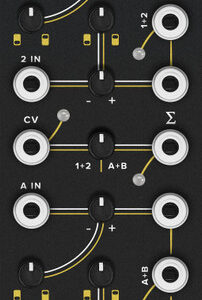

At the centre of the module is another processor, an accurate smooth linear voltage-controlled crossfader that mixes equally between the outputs of the top and the bottom MISO sections. Feed the MISOs with envelopes, LFOs, Sequences to create new shapes and then crossfade them manually or with CV using the centre section for even further complexity of shapes and animation of control signals. Crossfade between the waveforms of a VCO or audio samples with CV for more motion.
Specifications:
- Size: 10HP
- Depth: 26mm
- Power: +12V 55ma / -12V 55ma
