Description

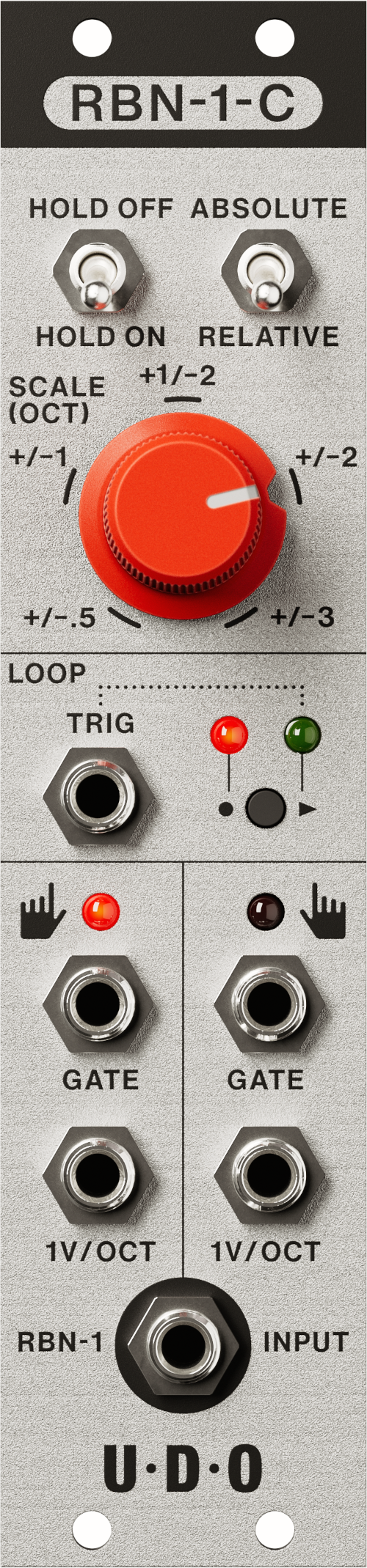

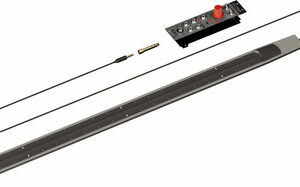

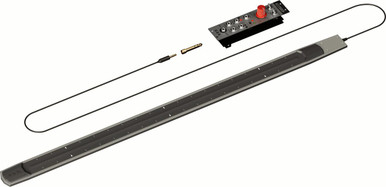

The RBN-1 Performance Ribbon Controller Interface is a powerful Eurorack module designed to seamlessly integrate with the UDO RBN-1 Ribbon Controller. This compact 6HP module offers an intuitive live looper, flexible performance controls, and dual CV/Gate outputs for expressive two handed play. Whether you want to fine tune your ribbon response, sync loops with external triggers, or send simultaneous modulations, this module provides the perfect interface for your creative needs. Built with high quality construction and a robust aluminium panel, it ensures durability and reliability for demanding performance environments.
Key Features:
- Custom Ribbon Behaviour:
Adjust the touch response and octave scaling to match your setup and playing style for ultimate control. - Live Looper with Trigger Input:
Record and loop ribbon expressions effortlessly, with an optional trigger input to sync playback with external devices. - Dual CV & Gate Outputs:
Play with both hands simultaneously—control oscillator pitch with one hand while modulating filter cutoff with the other.

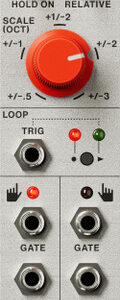

Custom Ribbon Behaviour:
With customisable behaviour settings, the RBN-1 interface allows you to fine tune the ribbon’s response to match your unique performance style. Adjust the octave scaling and sensitivity to ensure a natural and responsive feel. This flexibility ensures that your ribbon controller integrates seamlessly into your modular system, whether for expressive pitch bending, modulation, or triggering effects.

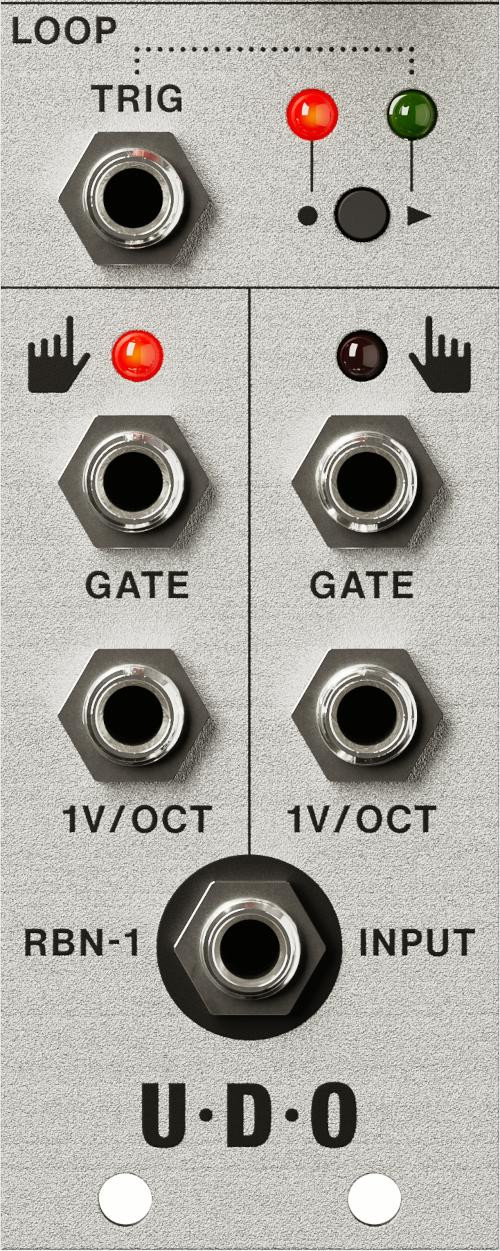

Live Looper:
The built in live looper lets you capture and repeat your ribbon expressions on the fly. Simply play, record, and loop your sequences for evolving performances. The optional trigger input enables external control, ensuring loops stay in perfect sync with your other modular gear. This feature is perfect for dynamic improvisation and layered soundscapes.

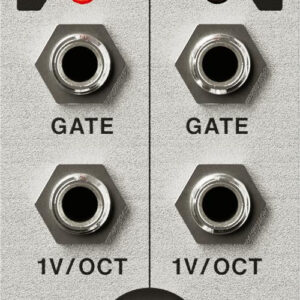

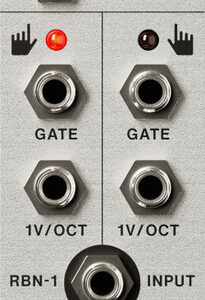

Dual CV & Gate Outputs:
Designed for expressive two handed play, the module provides two simultaneous CV and gate outputs. This allows for independent modulation of different parameters, such as controlling pitch with one hand while shaping timbre or filter cutoff with the other. Expand your creative possibilities and bring new dimensions to your modular performances.
Specifications:
- Format: Eurorack
- Width: 6HP (30mm)
- Depth: 33mm (including power connector)
- Panel Material: 2mm aluminium
- Power Requirements: 0V, +12V, 12V
- Supply Current: +30mA / 15mA
- Ribbon Input: 3.5mm TRS jack, compatible with UDO RBN-1 (5K 25K input resistance)
- Loop Trigger Input: 3.5mm TS jack, 0/5V logic level, high impedance (>10K)
- CV Outputs: 3.5mm TS jack, 1V/oct scaling, maximum +/ 8mV error
- Gate Outputs: 3.5mm TS jack, 0/5V logic level, active high, short circuit protected
- Build Quality: High quality construction with metal panel
